60V 10Ah–30Ah Lithium-Ion Battery | 67.2V CityCoco & Electric Scooter Battery

Longer rides. Reliable power. Built for 60V electric vehicles.

Upgrade your electric ride with the Aimjin HL-60V Lithium-Ion Battery, available in 10Ah, 20Ah, and 30Ah capacities.

Designed for compatible 60V-class electric bicycles, CityCoco-style scooters, electric scooters, tricycles, carts, and other electric vehicles, this battery delivers a 59.2V nominal voltage and charges to 67.2V when fully charged.

With a 30A continuous discharge rating and up to 60A instantaneous discharge, this battery is designed for applications requiring dependable power delivery.

Available Capacities

Choose the capacity that fits your riding style and space requirements:

Capacity	Nominal Voltage	Approx. Energy
10Ah	59.2V	592Wh
20Ah	59.2V	1,184Wh
30Ah	59.2V	1,776Wh

10Ah — Compact Option

The 10Ah version provides approximately 592Wh of nominal energy and can be a good choice where size and weight are priorities.

20Ah — Balanced Capacity

The 20Ah version provides approximately 1,184Wh of nominal energy, offering a balance between capacity and battery size.

30Ah — Extended Capacity

The 30Ah version provides approximately 1,776Wh of nominal energy for riders looking for greater battery capacity and longer potential riding range.

Actual range varies significantly depending on motor power, controller settings, rider weight, terrain, speed, temperature, tire pressure, and riding conditions.

60V-Class Battery With 67.2V Full Charge

Although marketed as a 60V battery, the specified nominal voltage is 59.2V.

The battery's specified charging voltage is:

67.2V

This is consistent with a 16-series lithium-ion battery configuration (16S) using approximately 4.2V per cell at full charge.

Voltage Specifications

• Rated Voltage: 60V

• Nominal Voltage: 59.2V

• Operating Voltage Range: 40V–67.2V

• Full Charging Voltage: 67.2V

Important Charger Requirement

Use a charger specifically designed for a 67.2V lithium-ion battery.

Do not use a generic charger simply because it says "60V."

The charger's actual output voltage must match the battery's required 67.2V charging voltage.

30A Continuous Discharge

This battery is rated for:

30A continuous discharge

and:

≤60A instantaneous discharge

The continuous rating is particularly important when matching the battery to your motor controller.

For example, a 60V-class system drawing 30A is approximately:

60V × 30A = 1,800W

This means the battery's 30A continuous rating should be considered when pairing it with high-power controllers and motors.

Important for 2000W Systems

A 2,000W motor at approximately 60V can require around:

2,000W ÷ 60V ≈ 33.3A

That is above the stated 30A continuous discharge rating.

A 2000W system may therefore require careful controller-current management. Verify the controller's battery-current limit before installation.

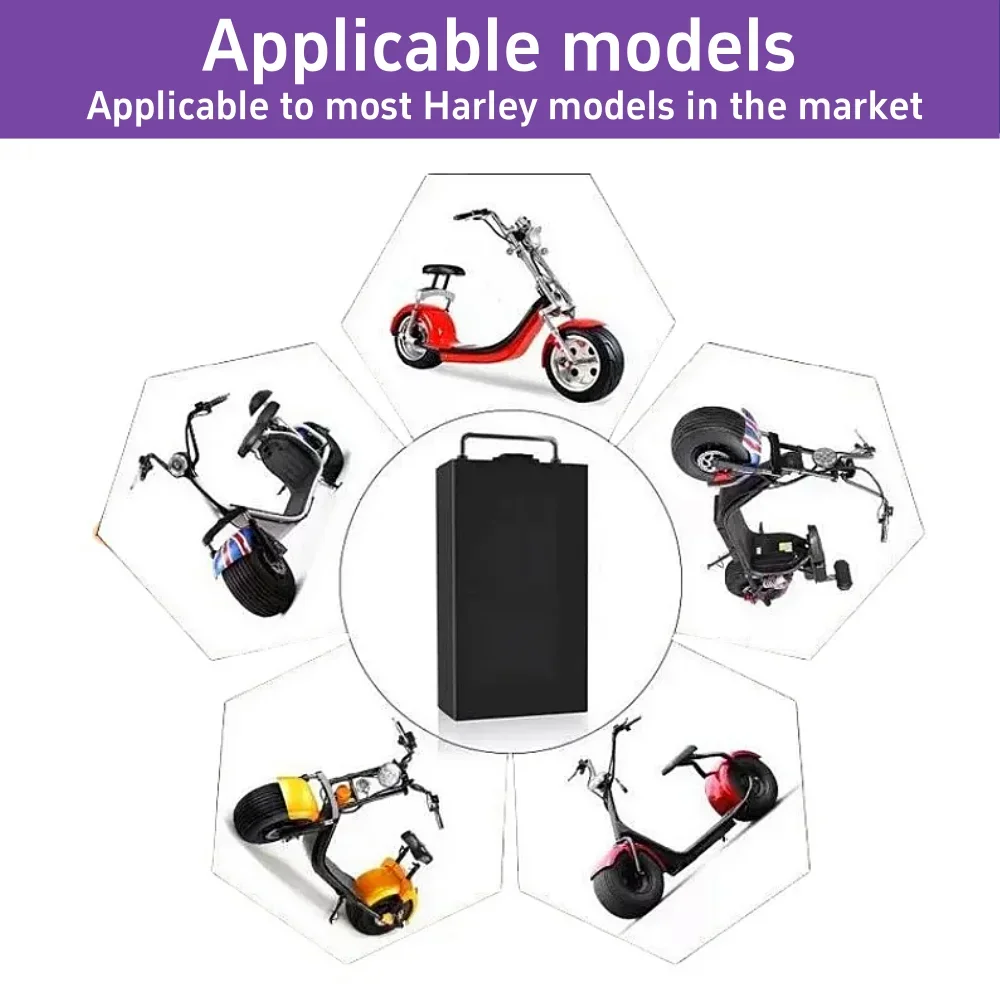

Built for Multiple Electric Vehicles

The Aimjin HL-60V battery is listed for applications including:

• Electric bicycles

• Electric scooters

• CityCoco-style scooters

• Electric motorcycles

• Tricycles

• Golf carts and trolleys

• Electric carts

• Wheelchairs

• Electric utility vehicles

• Power tools

• Electric equipment

• Solar and energy-storage applications

• Inverters

• RC applications

• Other compatible 60V-class equipment

Compatibility depends on voltage, physical dimensions, connector, BMS, current requirements, mounting system, and battery compartment size.

Battery Specifications

Specification	Details
Brand	Aimjin
Model	HL-60V
Battery Type	Lithium-Ion
Rated Voltage	60V
Nominal Voltage	59.2V
Available Capacities	10Ah / 20Ah / 30Ah
Charging Voltage	67.2V
Operating Voltage Range	40V–67.2V
Maximum Charging Current	10A
Continuous Discharge Current	30A
Instantaneous Discharge Current	≤60A
Service Life	More than 1,500 cycles
Dimensions	345 × 175 × 72 mm
Charging Temperature	0°C–45°C
Discharging Temperature	-20°C–60°C
Storage	90% power for 12 months
Certification	CE
Model Number	HL-60V
Origin	China

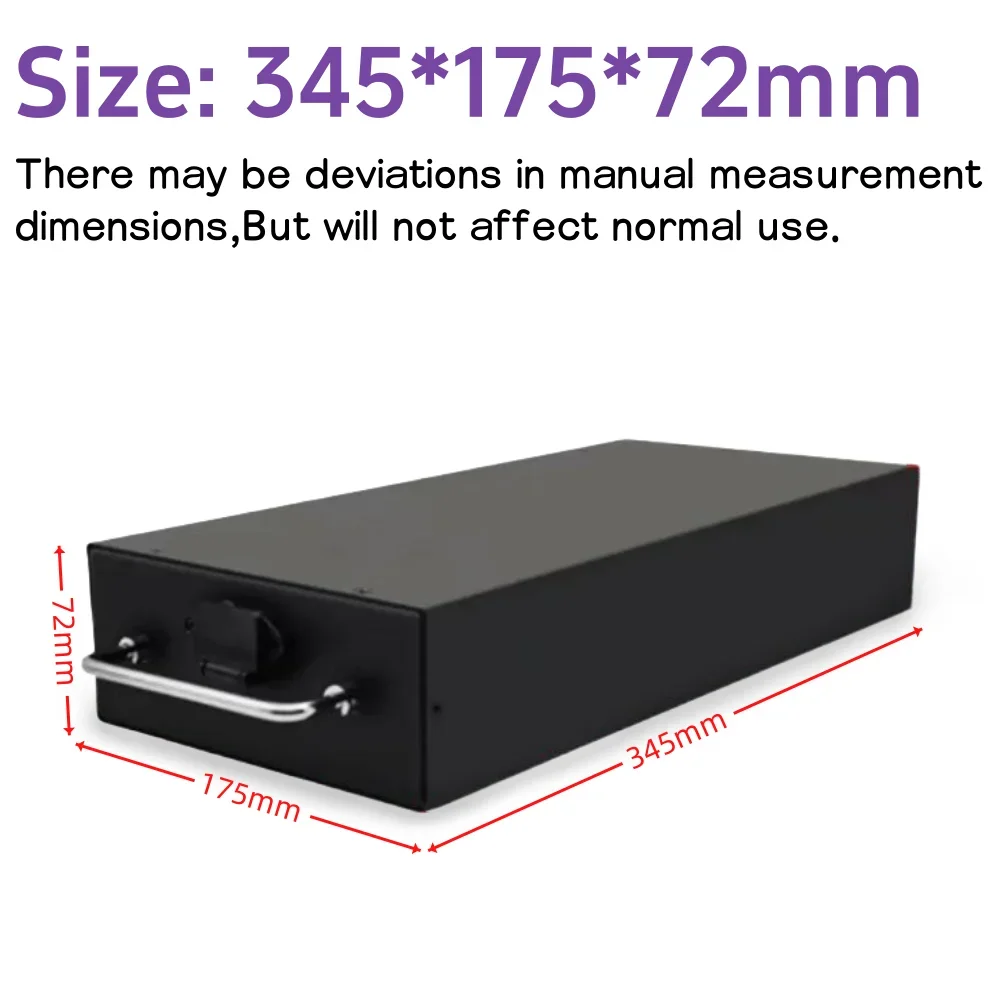

Battery Dimensions

345 × 175 × 72 mm

Before ordering, compare these dimensions with the available battery compartment or mounting location on your vehicle.

Allow additional space for:

• Battery connectors

• Wiring

• BMS enclosure

• Mounting hardware

• Cable routing

Physical fit is the customer's responsibility.

Charging Specifications

The battery has a specified:

67.2V charging voltage

and:

10A maximum charging current

This means the battery should be paired with a charger that produces 67.2V output and does not exceed the battery manufacturer's recommended charging-current limit.

For example:

Charger Current	Approx. Charging Power at 67.2V
2A	134W
3A	202W
5A	336W
8A	538W
10A	672W

A lower-current charger will generally take longer to charge the battery than a higher-current charger.

Estimated Charging Time

Actual charging time varies based on battery condition, charger output, charging efficiency, and BMS behavior.

Approximate theoretical times at the maximum 10A charging rate:

• 10Ah: approximately 1–1.5 hours

• 20Ah: approximately 2–2.5 hours

• 30Ah: approximately 3–3.5 hours

Actual charging time can be longer because lithium battery charging normally tapers current as the battery approaches full charge.

Battery Cycle Life

The supplier specifies a service life of:

More than 1,500 cycles

Actual cycle life depends on factors including:

• Depth of discharge

• Charging current

• Discharge current

• Operating temperature

• Storage conditions

• Charging practices

• Battery management system

• Cell quality

Proper charging and avoiding excessive heat can help maximize battery life.

Operating Temperature

Charging

0°C to 45°C

Discharging

-20°C to 60°C

Do not charge the battery outside the manufacturer's specified charging-temperature range.

Storage

The supplier specifies storage at approximately 90% state of charge for up to 12 months.

For extended storage, keep the battery in a dry, temperature-controlled environment and periodically inspect its condition.

Is This Battery Right for Your Electric Scooter?

This battery can be a strong option for compatible 60V-class electric scooters and CityCoco-style vehicles requiring a 67.2V full-charge lithium-ion battery.

Before ordering, verify:

☑ Your vehicle is designed for a 60V-class battery
☑ Your charger outputs 67.2V
☑ Your controller is compatible with the battery voltage
☑ Controller battery current does not exceed the battery's capabilities
☑ The battery physically fits
☑ Connector type and polarity match
☑ BMS requirements are compatible
☑ Mounting hardware is appropriate

Important Compatibility Warning

Voltage alone does not guarantee compatibility.

A battery can have the correct nominal voltage but still be incompatible because of:

• Connector type

• Connector polarity

• BMS communication

• Maximum discharge current

• Charging current

• Battery dimensions

• Mounting configuration

• Controller requirements

Do not connect this battery to your vehicle until the complete electrical specifications have been verified.

Frequently Asked Questions

What voltage is this battery?

It is marketed as a 60V battery with a specified 59.2V nominal voltage.

What charger does this battery need?

It requires a 67.2V lithium-ion battery charger with a charging current appropriate for the battery.

Can I use a 60V charger?

Check the charger's actual output voltage. A charger labeled "60V" may not have the correct charging output. This battery specifically specifies 67.2V charging voltage.

How many watt-hours does the battery have?

Approximate nominal energy is:

• 10Ah: 592Wh

• 20Ah: 1,184Wh

• 30Ah: 1,776Wh

Is this a 16S battery?

The specified 59.2V nominal and 67.2V charging voltage are consistent with a 16S lithium-ion configuration.

Can it power a 2000W scooter?

It may be used in a compatible high-power application, but the battery is rated at 30A continuous discharge. A 2000W system at approximately 60V can require more than 30A under full-load conditions, so verify the controller's battery-current setting.

How long will the battery last?

The supplier specifies more than 1,500 cycles, although actual service life depends on usage, charging, temperature, current, and storage conditions.

Does the battery include a charger?

The supplied specifications do not confirm that a charger is included. Check the specific product option before ordering.

Safety

• Use only with compatible lithium-ion equipment.

• Use a 67.2V lithium-ion charger.

• Do not exceed the battery's specified charging current.

• Do not short-circuit the battery terminals.

• Do not open, modify, crush, puncture, or disassemble the battery.

• Do not charge a damaged, swollen, leaking, or unusually hot battery.

• Keep away from excessive heat and moisture.

• Stop using the battery if you notice unusual odor, smoke, swelling, or excessive heat.

• Professional installation is recommended for high-power electric vehicles.
