FarDriver ND72360 High-Performance 3KW–4KW Programmable FOC Sine Wave DC Motor Controller Bundle –
48V / 72V Dual-Voltage (190A Continuous DC Current, 360A Peak Phase Current) Complete with ONE-LIN DKD Digital LCD Display & Plug-and-Play Wireless Bluetooth Tuning Module for Electric Motorcycles & High-Speed E-Scooters
Take your electric motorcycle, performance scooter, or custom EV build to the next level with the FarDriver ND72360 FOC Sine Wave Controller & ONE-LIN DKD Display Kit. Purpose-built to power 3000W to 4000W continuous brushless DC (BLDC) hub and mid-drive motors, this high-efficiency system delivers up to 190A continuous DC battery current and 360A peak phase current across 48V to 72V system configurations.
Utilizing advanced Field-Oriented Control (FOC) sine wave architecture, the ND72360 eliminates low-speed motor shudder while maintaining ultra-quiet operation, higher system efficiency, and lower thermal output. This complete bundle comes fully paired with a DKD LCD Speedometer Dashboard operating via ONE-LIN protocol and a plug-and-play Bluetooth module for wireless parameter adjustment directly from your smartphone.
⚠️ System Compatibility & ONE-LIN Protocol Notice
IMPORTANT WIRING & MOTOR MATCHING GUIDELINES:
ONE-LIN Communication Protocol: Both the FarDriver ND72360 controller and the included DKD LCD display communicate via ONE-LIN bus for seamless, single-wire speed, battery voltage, and telemetry readouts.
QS & Yuma Motor Optimization: Pre-configured auto-learning routines pair effortlessly with QS Motors and Yuma Motors. (Third-party BLDC motors can easily be calibrated using the built-in auto-learn procedure via the mobile app).
Operating Voltage Range: Supports 48V to 72V DC nominal battery packs (maximum peak voltage cut-off up to 88V DC).
🚀 Key High-Performance Features
-

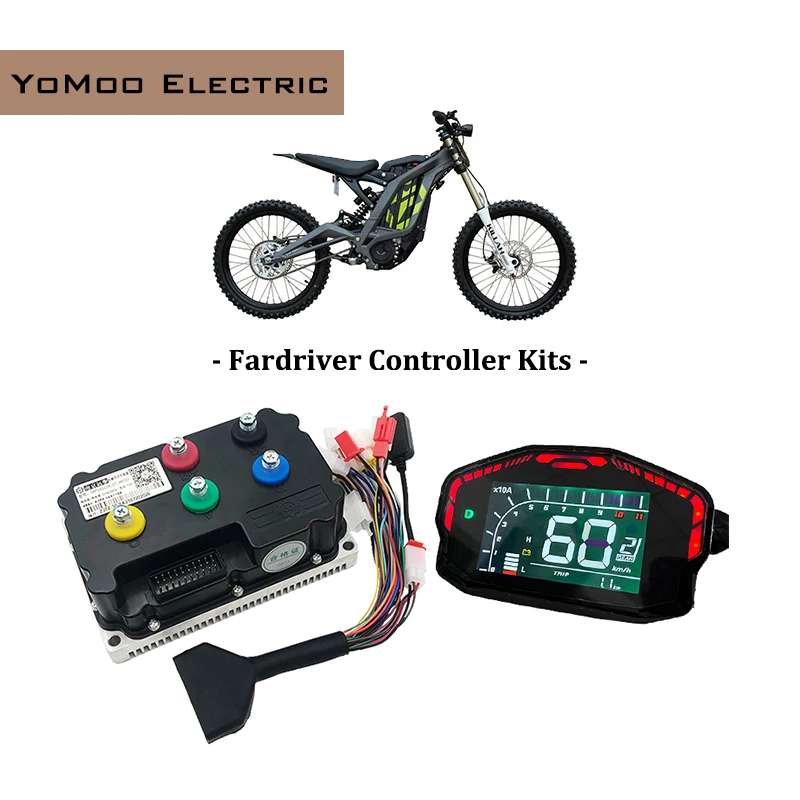

Complete All-in-One Package: Includes the ND72360 FOC controller, ONE-LIN DKD digital dashboard, and a plug-and-play Bluetooth programming adapter.
-
High-Current Delivery (190A DC / 360A Phase): Engineered for 3KW–4KW motor builds, providing instant launch torque, strong hill climbs, and smooth continuous speed.
-

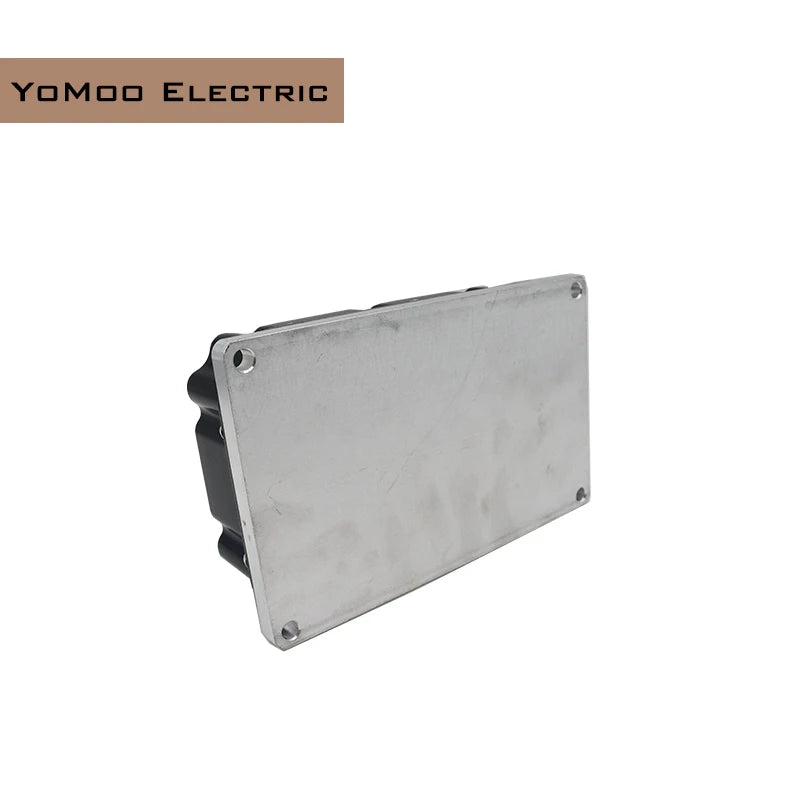

Rugged IP67 Waterproof Construction: Sealed aluminum alloy casing ($189 \times 119 \times 65\text{ mm}$) ensures long-term protection against heavy rain, mud, and trail dust.
-
Wireless Smartphone Tuning: Adjust battery limits, phase current, flux weakening (top-speed boost), throttle response curves, and regenerative braking using the iOS or Android FarDriver App.
-
Self-Learning Calibration Routine: Simplifies initial motor commissioning by automatically detecting Hall sensor sequence and motor phase angles.
-
Clear ONE-LIN Digital Dashboard: The included DKD display offers high visibility for real-time speed, battery level, turn signals, headlight status, and system diagnostic codes.
📊 Technical Specifications Matrix
| Specification Parameter | FarDriver ND72360 Bundle Specifications |
| Brand / Manufacturer | Nanjing FarDriver |
| Model / Bundle | ND72360 + DKD LCD Display Kit |
| Controller Architecture | FOC Sine Wave BLDC / PMSM Motor Controller |
| Supported Motor Power | 3KW to 4KW Motors (3000W – 4000W) |
| Operating Voltage Range | 48V – 72V DC Nominal (88V Max Peak Cutoff) |
| Max Battery DC Current | 190A Continuous |
| Max Phase Current | 360A Peak Surge |
| Ingress Protection Rating | IP67 Waterproof & Dustproof |
| Display Communication | ONE-LIN Bus Protocol |
| Wireless Interface | Included Plug-and-Play Bluetooth Dongle |
| Physical Dimensions ($L \times W \times H$) | Approx. $189 \times 119 \times 65\text{ mm}$ |
| Weight | Approx. 1.8 kg – 2.0 kg |
📋 Ideal Applications
The FarDriver ND72360 + DKD Display Kit is engineered for:
-
3KW to 4KW Electric Motorcycles, Street Scooters & E-Mopeds
-
QS Motor & Yuma Motor Mid-Drive and Hub Motor Upgrades
-
High-Speed 48V/72V Custom EV Conversions & Off-Road Electric Vehicles
📦 Package Contents
-
1 x Nanjing FarDriver ND72360 48V/72V 190A DC Sine Wave Controller
-
1 x ONE-LIN DKD Digital LCD Display Instrument Panel
-
1 x Plug-and-Play Wireless Bluetooth Adapter Module
-

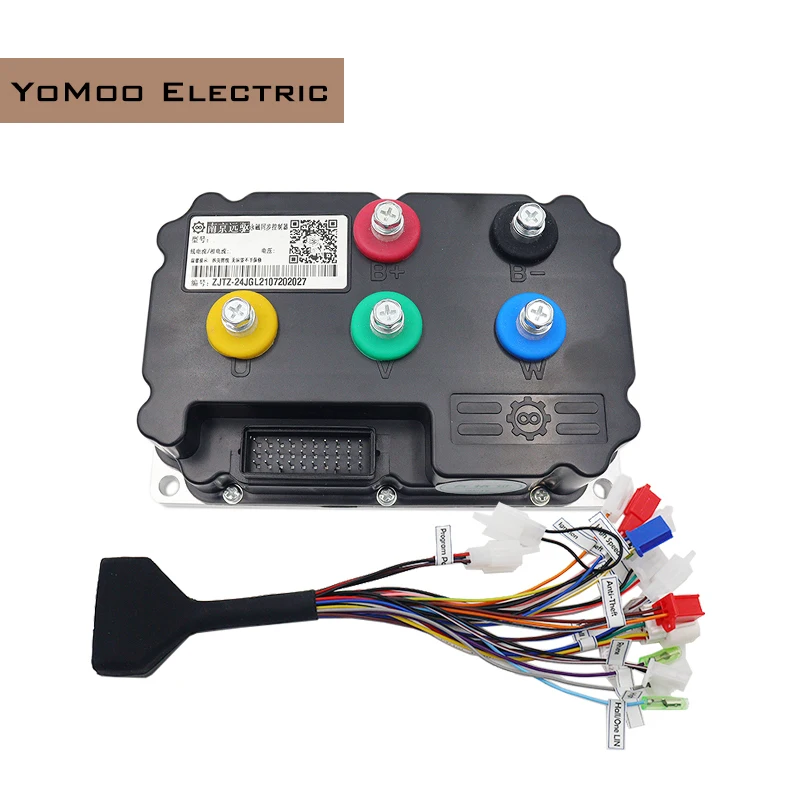

1 x Complete Wiring Signal Harness Assembly
-
1 x Software Download Link & User Setup Manual
Equip your 3KW–4KW build with complete FarDriver control and real-time dashboard instrumentation. Select your kit options above, click Add to Cart, and order today!
2. Key Features
1). High power, high quality, high efficiency, and intelligence.
2). It is suitable for vehicle applications of various Hall motors.
3). It is suitable for middle- and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
4). Using high-quality fully imported MOS core, full metal shielding, and aluminum die heat dissipation structure.
5). The hardware architecture and software implementation are perfectly matched and refined.

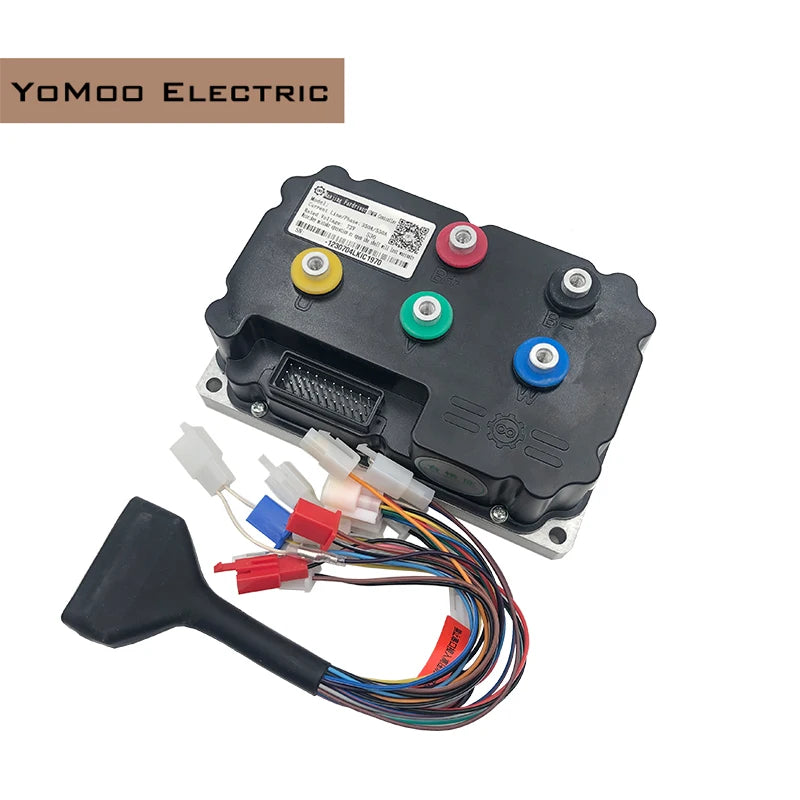

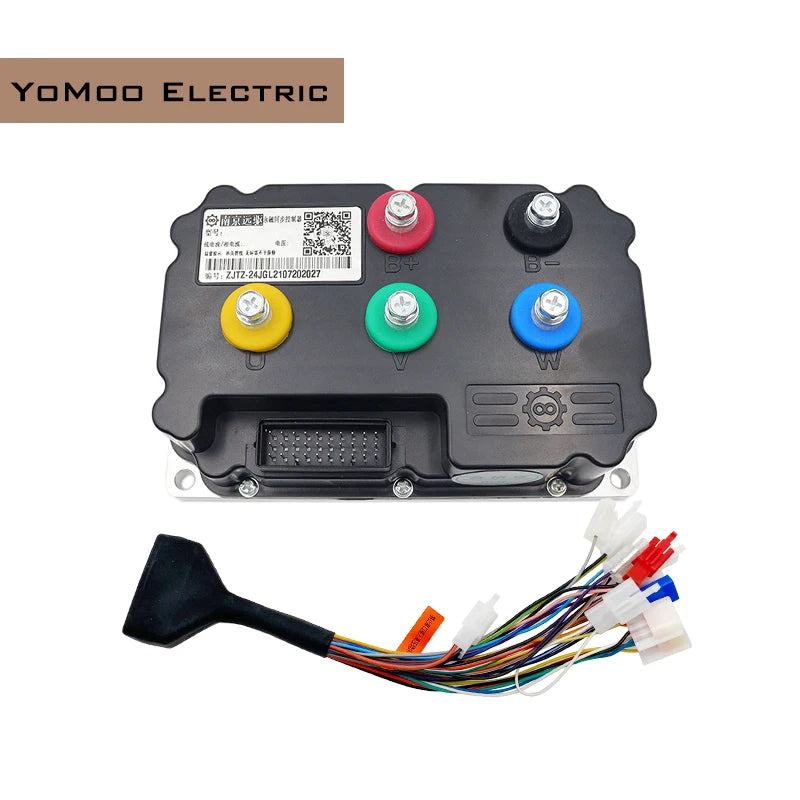

3. Controller SPEC
Controller Design: Sine Wave BLDC
Model: ND72360
Working Communication: Hall Sensor
Available Rated Battery Voltage: 48V/60V/72V
Peak Battery Voltage: 88V
Available Motor Power: 2400W - 4000W
Default Throttle Working Voltage: 0V - 5V
Peak DC Current: 190A
Peak Phase Current: 360A
Mosfets Detail: 24 FET
Weight: 2.2kg
Instaliing Size: 189mm * 121mm * 65mm
Case Material: Aluminum
Support Programmable: PC & Phone
4.Software

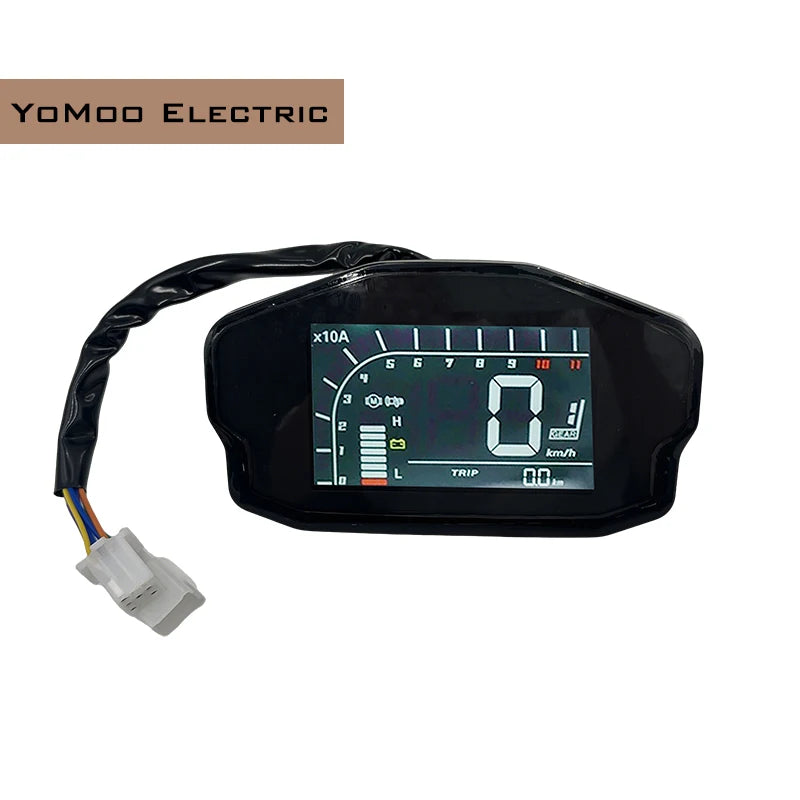

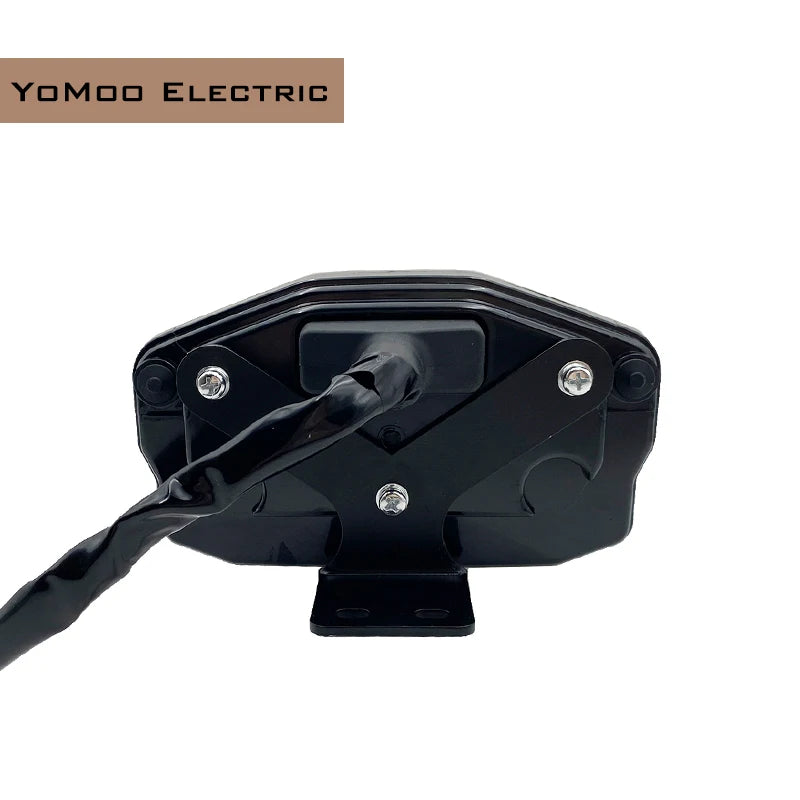

5. DKD ONE-LIN Speedometer
Speedometer Type: One-LIN protocol
Battery Voltage: 48V-96V
Displays data: Speed KMH/MPH, Battery Level, Trip Distance, Fault Display, Headlight, Turning Light, Gear Display.
6. FAQ
Q: How about the Duty & Tax?
A: All products are sent in DDU terms; the total price does not include tax and duty. The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance; please ensure that you have the ability to clear the goods before purchasing.
Q: About the functions and interfaces of the controller
A: Most of the controllers we sell are universal versions, not customized for a specific brand. Therefore, after installation, some auxiliary functions of the original vehicle may not work normally (such as speedometer display)
Most functional interfaces need to be modified, not plug and play.
Before refitting, please carefully check the function line on the original vehicle and the communication signal of the speedometer.
Q: How long is the delivery time?
A: For some stock controllers and motors, we could ship them out within 24 hours. If no stock, the delivery time is normally 6- 10 working days (some customized products will take more days).
Q: About delivery timeliness
A: The time limit of commitment of AliExpress shipping channel is 60 days (Goods can usually be received within 3 weeks, but it may take longer for some special countries).
If you want to make fast delivery, please select FedEx, DHL, or UPS.
Q: How about the warranty?
A: We offer a 1-year warranty for motors and controllers, but the buyer has to pay the return shipping cost for repairing or replacing a new one.
If you have any problems, please feel free to contact us, and we will try our best to help you.
If you don't have any knowledge of electric kit assembly, please make a prudent choice to buy it or not! There is no warranty for man-made damage.
Q: About the shipping way
A: Sometimes the online shipping cost and shipping way are not the best; we will choose the most convenient shipping way for you and will inform you before shipping. Thank you for your understanding.
