📖 eBike Power Network LLC – Owner’s Manual & Safety Guide

Thank you for choosing our premium e-bike battery pack. Please read through this guide carefully before your first ride to ensure safe operation, proper maintenance, and peak performance.

⚡ Quick Start Operating Instructions

1. Charging your Pack: Connect the battery’s charging port to your dedicated lithium-ion charge controller, then plug the charger into a standard wall outlet.

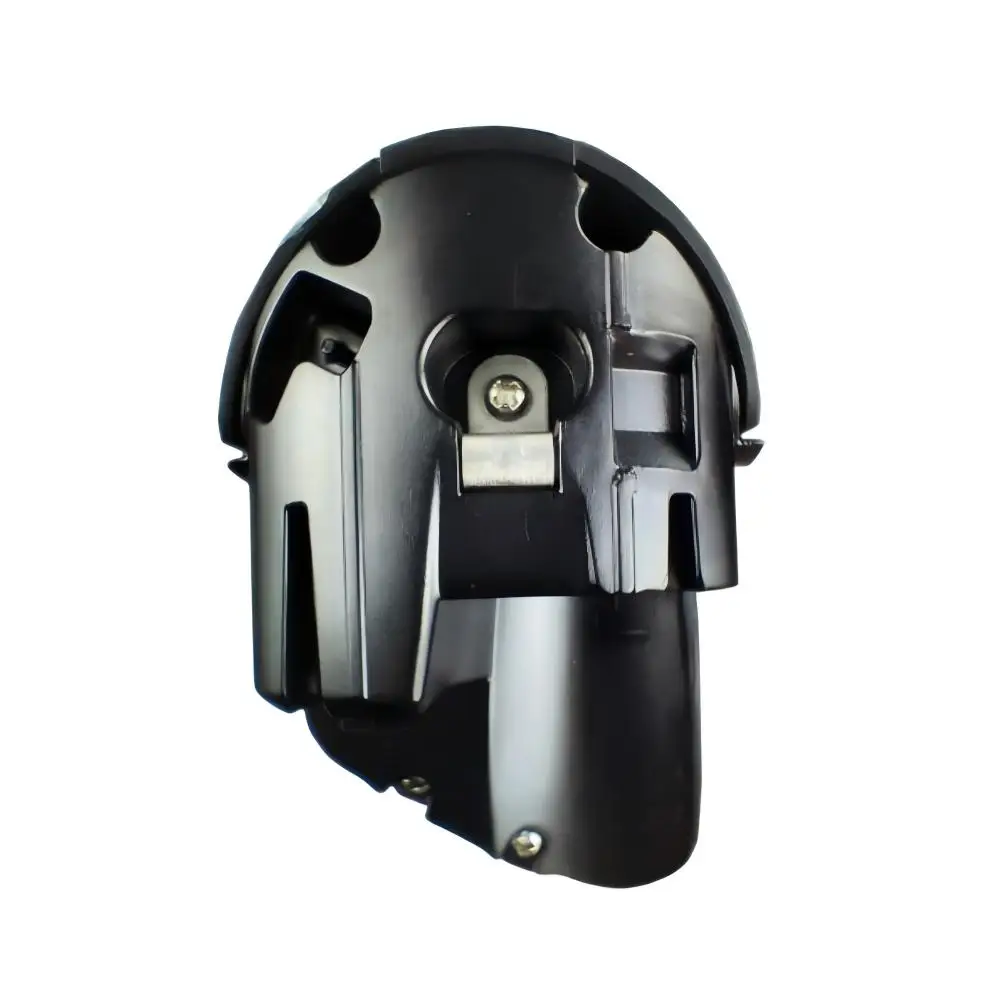

2. Powering your Ride: Securely mount and lock the battery pack into your bike's cradle base plate, connect the power leads to your motor controller (the load), and switch the system on.

⚠️ Essential Safety Rules & Maintenance

• Preventing Surface Resistance: When linking batteries in a series or parallel configuration, check the terminal connection faces for oxidation. If a dull layer is present, gently clean the metal surface with a fine steel wire brush until it shines. This minimizes contact resistance and prevents localized heat buildup.

• High Voltage Shock Warning: When handling custom multi-battery configurations where the collective potential across the electrodes exceeds 24V, remember that this voltage can cause electrical shock. To ensure your safety, never touch both open positive and negative terminals simultaneously with your bare hands or body.

• Long-Term Storage Protocol: If you plan to store your battery pack unused for an extended period, charge or discharge it to approximately 80% capacity. Never leave it completely empty or fully charged. To protect cell health, perform a full charge and discharge cycle once every three months to refresh the chemistry.

• Avoid Extreme Conditions: Keep your battery pack completely isolated from open flames, direct heat sources, and deep water submersion (including seawater). Avoid leaving it inside a hot car during peak summer days.

• What to Avoid:

  • Do not short-circuit, over-charge, or completely over-discharge the cells.

  • Do not break open, alter, or modify the internal layout or casing.

  • Do not transport or store your battery loose in a bag containing metallic objects like keychains, coins, loose screws, or hairpins.

  • Do not reverse the positive and negative wiring polarities for any reason.

• Charging Equipment: Always use a premium Constant Current / Constant Voltage (CC/CV) charger designed specifically for lithium-ion setups.

💬 Frequently Asked Questions (FAQ)

1. How do I know if this battery will fit my electric bike?

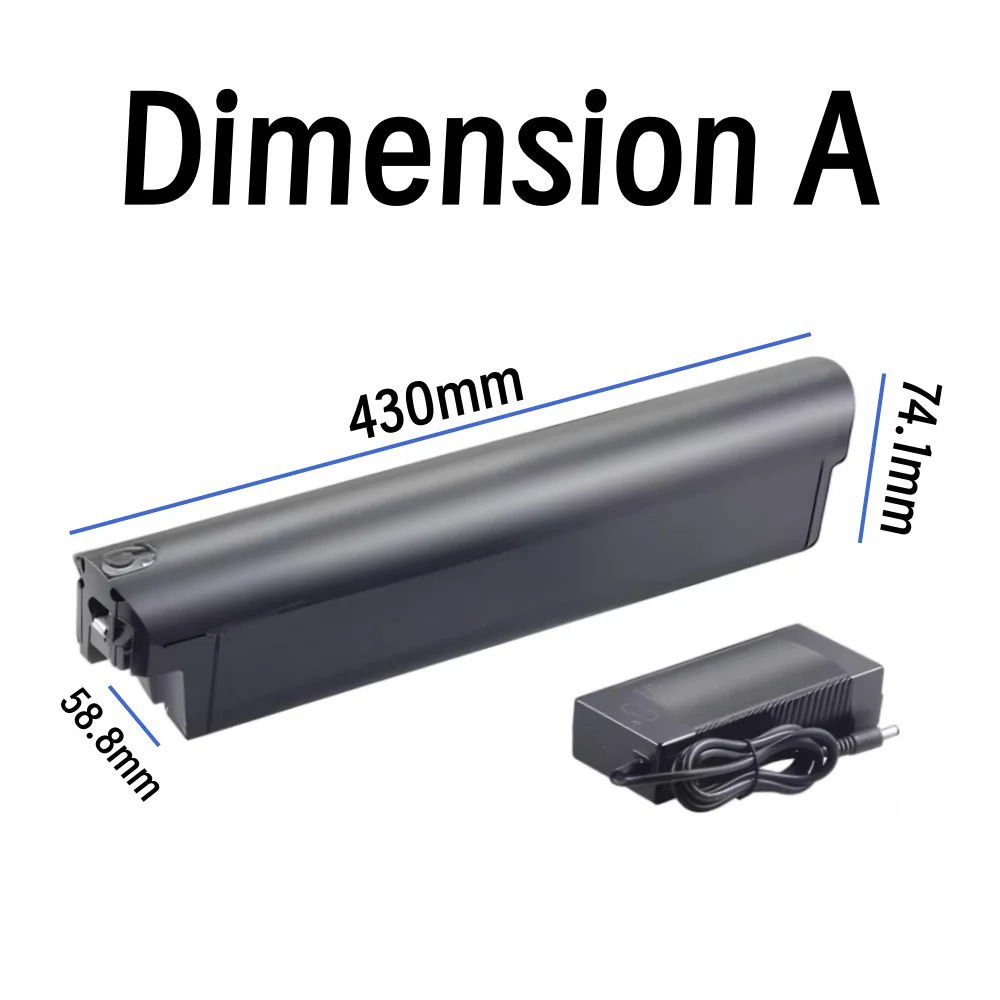

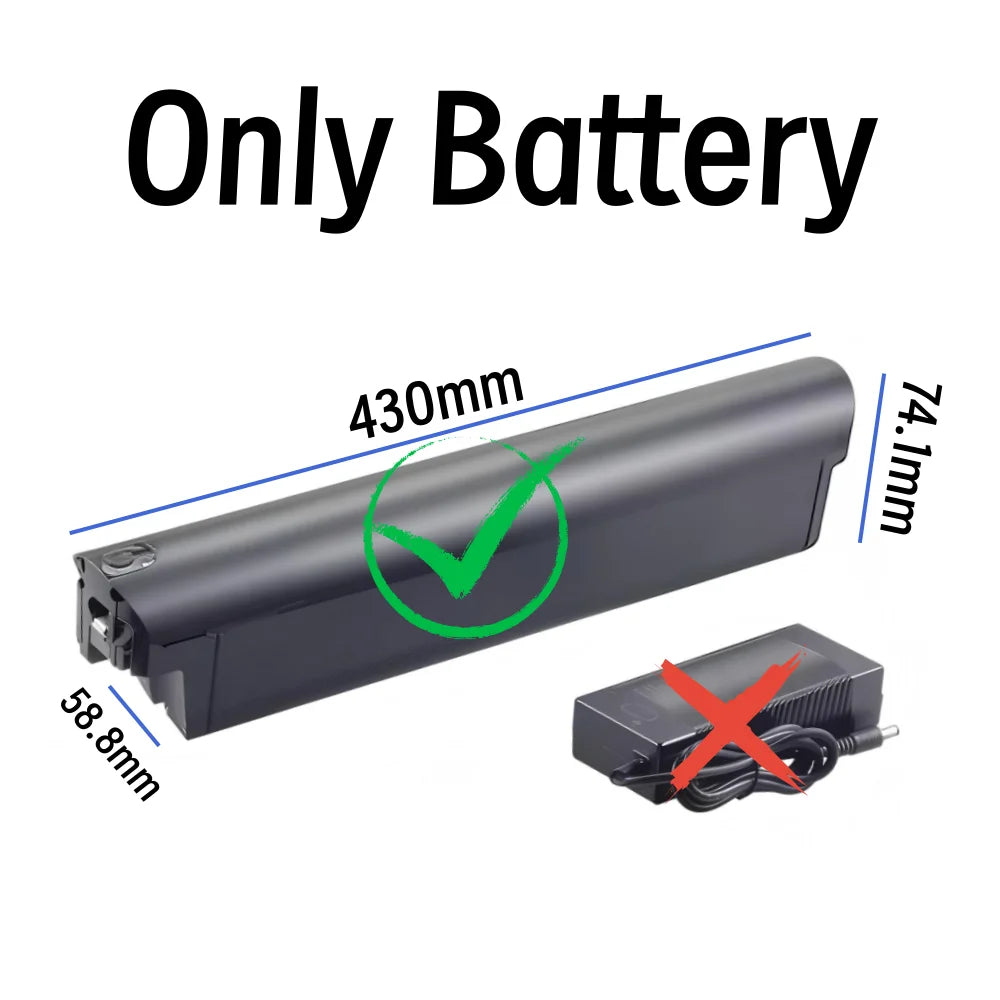

First, check the physical dimensions and mounting design of your current battery box. If the shape and size match up, it will fit into your frame space smoothly.

Second, check your motor's voltage requirements:

• For a 36V motor, you must choose a 36V battery.

• For a 48V motor, you can pair it with either a 48V or a 52V battery (for an extra boost in performance).

• For a 60V motor, you must select a 60V battery.

2. What specific chemistry is used in these power packs?

These are premium, stable Lithium-ion (Li-ion) battery packs using an advanced Lithium Cobalt Manganese Oxide (LiCoMnO2) formulation for an excellent balance of high energy density and safety.

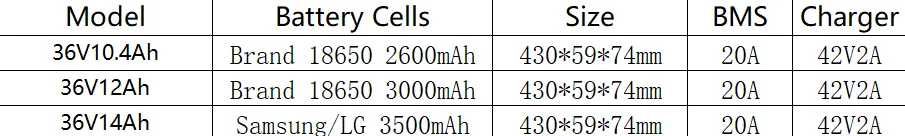

3. What internal cells are used to build the pack?

We utilize only premium, brand-new Grade-A cells selected to fit your specific capacity tier. Our builds feature authentic cells from Samsung, Panasonic, Sanyo, and LG, alongside ultra-reliable, high-power Chinese manufacturer cells.

• 18650 Size: Available in 2600mAh, 2900mAh, 3000mAh, 3200mAh, and 3500mAh densities.

• 21700 Size: Available in high-output 4800mAh and 5000mAh capacities.

• Need a custom internal design? Reach out to our team for specialized custom builds.

4. What makes Lithium-ion batteries better than old Lead-Acid or Ni-MH packs?

Lithium-ion e-bike packs outperform older styles across the board. They provide a much longer life cycle (often exceeding 1,000 charges), weigh a fraction of lead-acid blocks, are significantly smaller, have zero "memory effect," and contain zero toxic heavy metals—making them a cleaner choice for the environment.

5. What are the safe temperature windows for riding and charging?

• Charging Temperature Range: 0°C to 45°C (32°F to 113°F) — Never charge a frozen battery.

• Discharging/Riding Temperature Range: -20°C to 65°C (-4°F to 149°F)

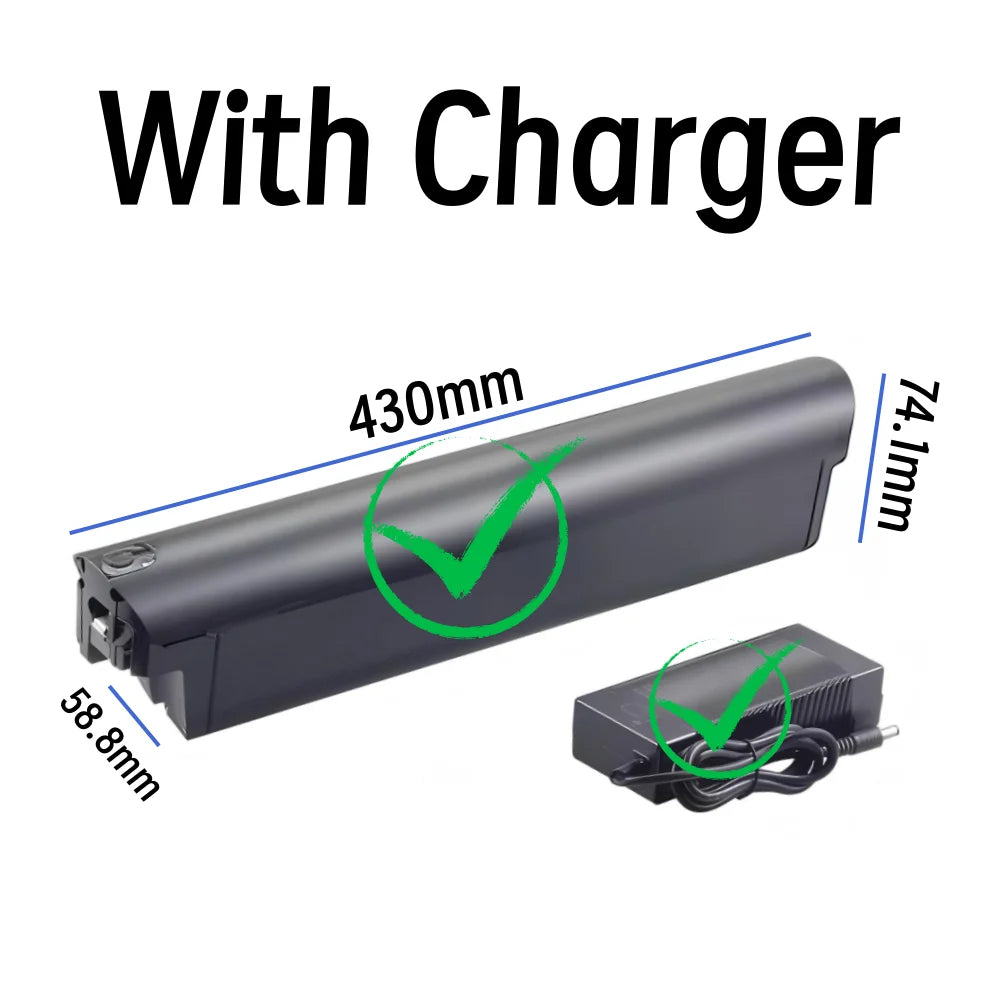

6. Is a battery charger included with my order?

Yes! Every e-bike battery we ship includes a dedicated matching charger at no extra cost. We also offer high-amp fast chargers as an available upgrade. If you want to speed up your charge times with a fast charger, simply get in touch with our support staff before ordering.

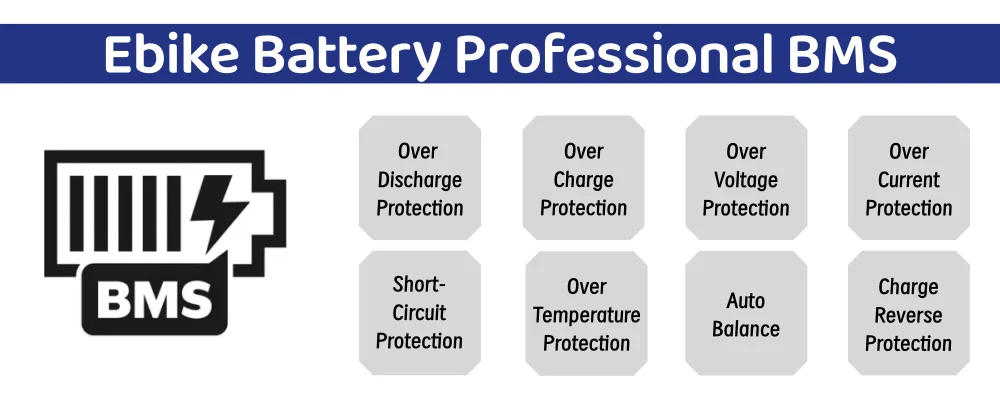

7. Do these packs include an integrated safety BMS?

Absolutely. Every battery pack features an integrated, high-performance SEIKO IC Battery Management System (BMS). This smart internal chip constantly monitors cell health to protect your system from short circuits, overcharging, deep over-discharging, and excessive current draws.

8. Can I submit custom manufacturing requests (OEM / ODM)?

Yes. We are a professional, factory-backed e-bike battery specialist. We regularly design and manufacture custom lithium-ion configurations tailored to unique commercial dimensions, frame footprints, and power profiles. Contact our sales department to discuss your custom specifications or project plans.

🛡️ Quality Guarantee & After-Sales Support

At eBike Power Network LLC, we back our manufacturing quality with a comprehensive safety-tested promise. Every single power pack undergoes a 100% rigorous load test and inspection routine before leaving our workshop.

• 18-Month Comprehensive Warranty: Enjoy an inclusive 18-month warranty protecting your battery against structural and internal manufacturing defects.

• 30-Day New Replacement Window: If your battery pack develops a verified performance or material defect within the first month of delivery, provide our support desk with clear proof, and we will ship you a brand-new replacement unit.

• Free Repair Coverage: If an unexpected mechanical or electrical issue arises within the first full year, we provide comprehensive, completely free repair services to get you back on the road safely.
