Aleaivy Hailong High-Capacity Lithium-Ion E-Bike Battery Series –
36V / 48V / 52V Nominal Options (10Ah, 15Ah, 20Ah) with 4-Pin or 5-Pin Mounting Base Plate for Bafang BBS01, BBS02 & BBSHD Mid-Drives (Built-in Smart BMS, USB Output & CE/UL Certified)
Power your everyday commuting, long-distance touring, or conversion builds with the Aleaivy Hailong E-Bike Lithium Battery Series. Specifically configured for popular mid-drive systems like Bafang BBS01, BBS02, and BBSHD—as well as standard hub motor kits—this series offers seamless compatibility, high-current discharge stability, and robust frame mounting.
Engineered in the classic Hailong downtube profile with high-grade 18650 and 21700 cell options, this battery platform is available in 36V, 48V, and 52V system voltages with capacities up to 20Ah. Designed with versatility in mind, you can choose between a 4-Pin or 5-Pin discharge terminal base plate to swap directly onto your existing base rail or install the included complete dock.
⚠️ Base Terminal & Motor Compatibility Notice
IMPORTANT PIN TERMINAL & VOLTAGE SELECTION:

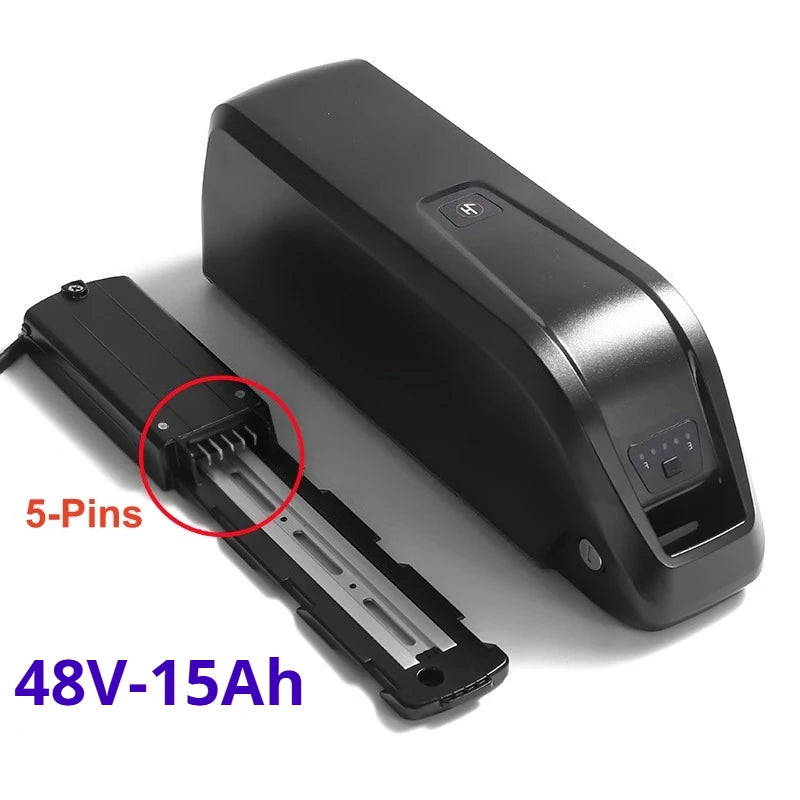

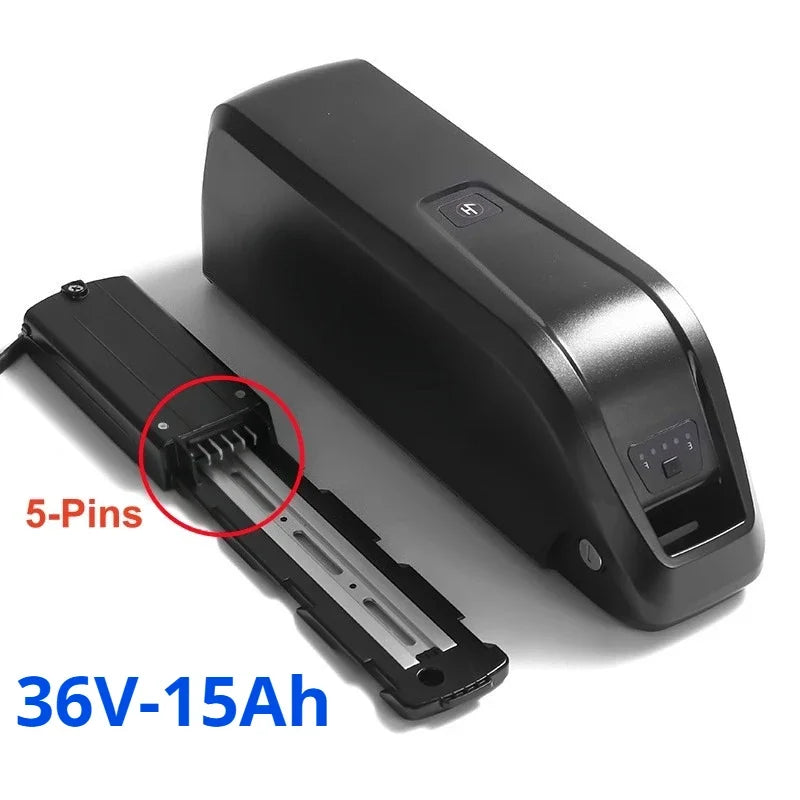

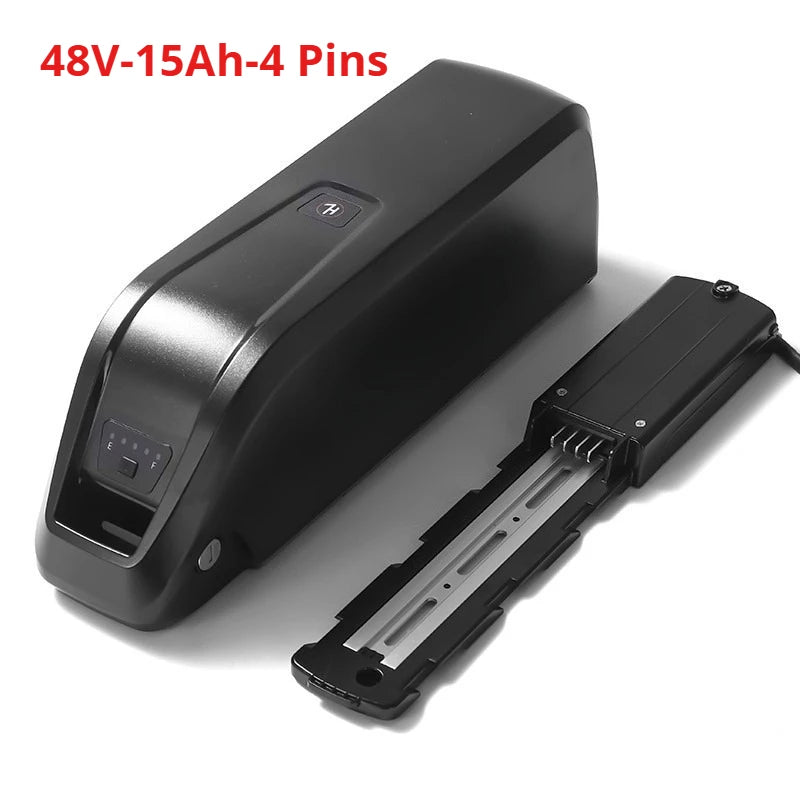

4-Pin vs. 5-Pin Base Option: Check the bottom pins on your current battery dock! Select the 4-Pin (blade style) or 5-Pin (round contact style) version to match your existing rail. If installing a fresh kit, use the included base plate.
36V Systems (10S): Fits 250W–500W motors including Bafang BBS01.
48V Systems (13S): Optimized for 500W–1000W Bafang BBS02 and hub motor setups.
52V Systems (14S): High-power setup for Bafang BBSHD (1000W+) mid-drives, providing higher top speeds and reduced motor strain.

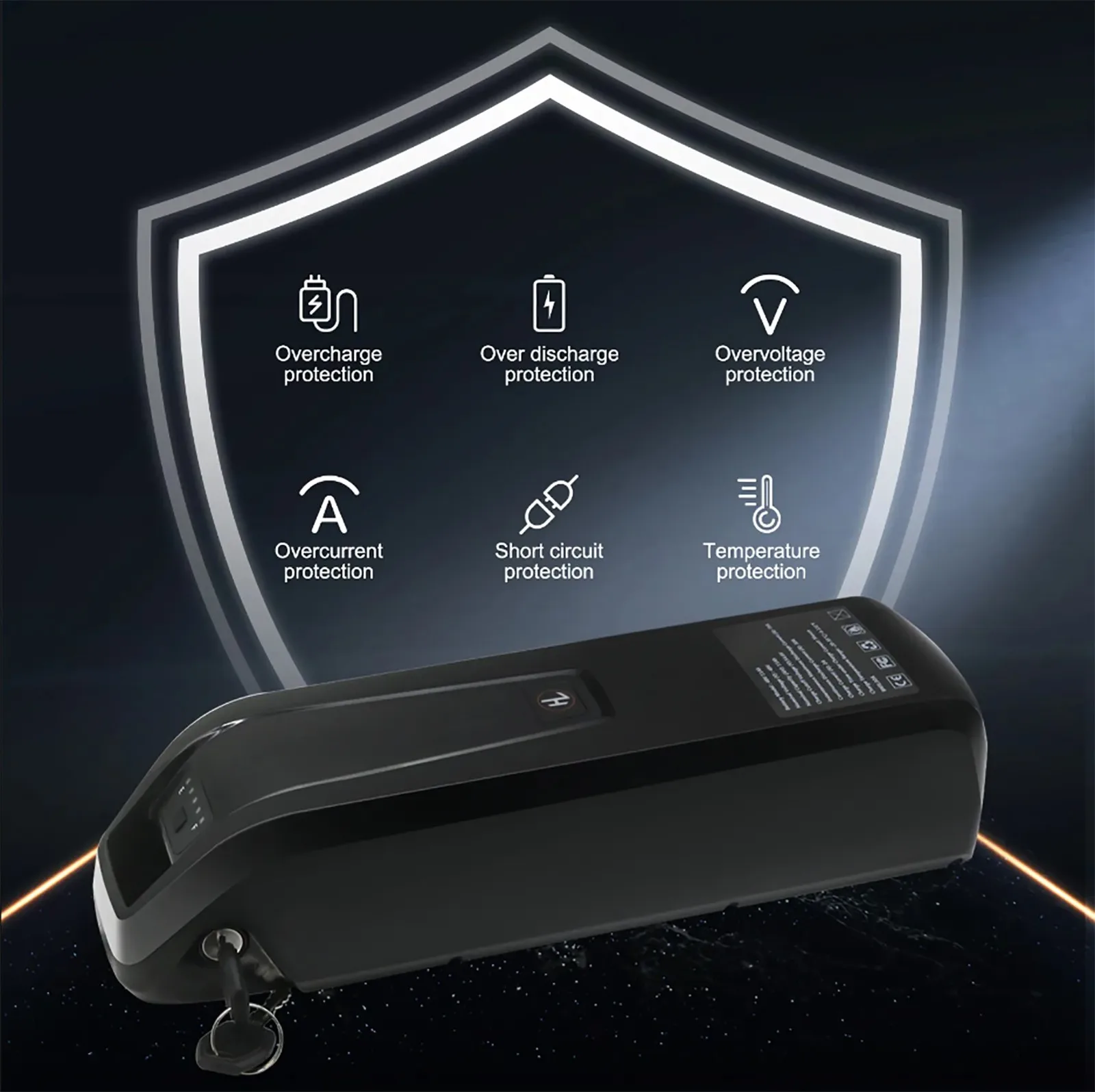

Integrated Smart BMS: Built-in multi-protection BMS guards against short circuits, overcharging, over-discharging, and thermal overload.
🚀 Key High-Performance Features
-
Bafang Mid-Drive Ready: Engineered specifically to meet the high peak-amp demands of Bafang BBS01, BBS02, and BBSHD mid-drive systems.
-
4-Pin & 5-Pin Base Interchangeability: Easily pairs with your existing frame rail or the included heavy-duty mounting base plate.
-
Built-in USB Power Bank: Features an integrated 5V USB output port to charge your mobile phone or GPS unit while riding.
-
IP65 Weather Resistance: Protective ABS casing guards internal cell matrices from rain, road splash, mud, and dust.
-
Security Key Lock & Power Indicator: Anti-theft locking cylinder secures the battery to your bike frame. Includes an LED charge status button.
-
Certified Safety Testing: Independently tested and verified under CE and UL safety standards.
📊 Technical Specifications Matrix
| Specification Parameter | Aleaivy Hailong Battery Specifications |
| Brand Name | Aleaivy |
| Model / Style | Hailong Downtube Casing |
| Nominal Voltage Options | 36V | 48V | 52V DC |
| Capacity Options | 10Ah / 15Ah / 20Ah Options |
| Cell Format / Type | High-Density 18650 / 21700 Lithium-Ion (Li-Ion) |
| Mounting Interface | 4-Pin OR 5-Pin Base Rail Output (Selectable) |
| Motor Compatibility | 250W – 1500W+ Bafang BBS01, BBS02, BBSHD & Hub Motors |
| Auxiliary Ports | 5V USB Mobile Charging Port + DC Charge Port |
| Internal Safety Circuit | Integrated 30A / 40A Smart BMS Protection Board |
| Certifications | CE, UL Certified |
📋 Ideal Applications
This Aleaivy Hailong Lithium Series is engineered for:
-
Bafang Mid-Drive Conversions (BBS01 250W/350W, BBS02 500W/750W, BBSHD 1000W)
-
Standard 36V, 48V, and 52V Front/Rear Hub Motor Conversion Kits
-
Commuter E-Bikes, Hardtail E-MTBs, and Cargo Delivery Setups
📦 Package Contents
-
1 x Aleaivy Hailong Lithium-Ion Battery Pack
-
1 x 4-Pin or 5-Pin Frame Mounting Docking Base (Selected Version)
-
1 x Smart Lithium-Ion Battery Charger
-
2 x Anti-Theft Security Keys
-
1 x XT60 Discharge Output Cable Lead
Power your Bafang drive system with reliable Hailong lithium energy. Select your voltage, capacity, and pin interface options below, click Add to Cart, and order today!
*Equipped with the Top 18650 Cells & USB Port, for 3 - 5 Year Life-Span, the battery case has waterproof function.
*Built-in BMS for Using Security & 1,200 times Recharge-Cycle.
*The electric bike battery pack has 4-PINS/5-PINS(optional) battery base with Discharge Cable, will fit for most bike frame.
Please note before purchase:
1. What is the voltage of your bicycle? If it's 36V, buy a 36V battery. If it's 48V, buy a 48V battery. You can also tell the voltage of the battery
you need from your original battery or the control center. 10Ah,15Ah,20Ah, and 30Ah represent the battery capacity and indicate the range
2. Is the size of the battery suitable for fitting into your bicycle frame
3. The interface between the battery and the base needs to be determined. We have two types of interfaces: 4-pin and 5-pin. If your original
battery base is 4-pin and you don't want to replace the base, you can purchase a 4-pin battery set. If it's a 5-pin battery base, buy a 5-pin
battery because our battery set includes the base.
Of course, if you don't mind replacing the original battery base, you don't need to worry about whether the battery base is 4-pin or 5-pin,
because our batteries come with battery bases
4. When charging, please connect the power supply first and then the battery
5. Do not use up all the battery power completely. The battery should be charged each time with some remaining power
6. When you receive a new battery, make sure to charge it before using it.
About this item:
【Solid & Waterproof】This battery shell is made of water-resistant and firm ABS plastic casing, ensure protect the inside cells from damages for fallen or crashes. Meanwhile, it has IP65 waterproof sealing to avoid water and moisture damage, so it can be used throughout the day, whether it is rain or mud.
【Advanced Battery Management System】This e-bike battery has a design with the smart battery management system, referred to as BMS. The BMS has to undertake a more accurate calculation of electricity to ensure the service life of the ebike battery, can also protect the bike battery from damage caused by short-circuit, over-current, over-charge, and over-discharge, to provide safety while in the electric bike battery is running.
【Safe Lock】Anti-theft function.LED power Indicator:Real-time battery level detection, reminds you to charge the battery. Power Switch: Reduces battery power loss.USB Port: Can charge your phone.30A BMS: Can effectively protect the battery and make it safer. Waterproof case: Reduces the possibility of damaging the internal battery.Anti-vibration Pads: It has already been adhered to the battery base.Stronger and less vibration! Product with 4pin battery base/5pin battery base, easy to install. Discharge wire with yellow wax tube, which is waterproof, anti-electricity, and high temperature resistant!
【 ≥80% Capacity After 800 Cycles】Our electric bicycle battery uses automotive-grade A cells; every e bike battery has passed the QC appearance and function test before shipment. The ebike battery charge cycle exceeds 1000 times, ≥80% capacity after 800 cycles.

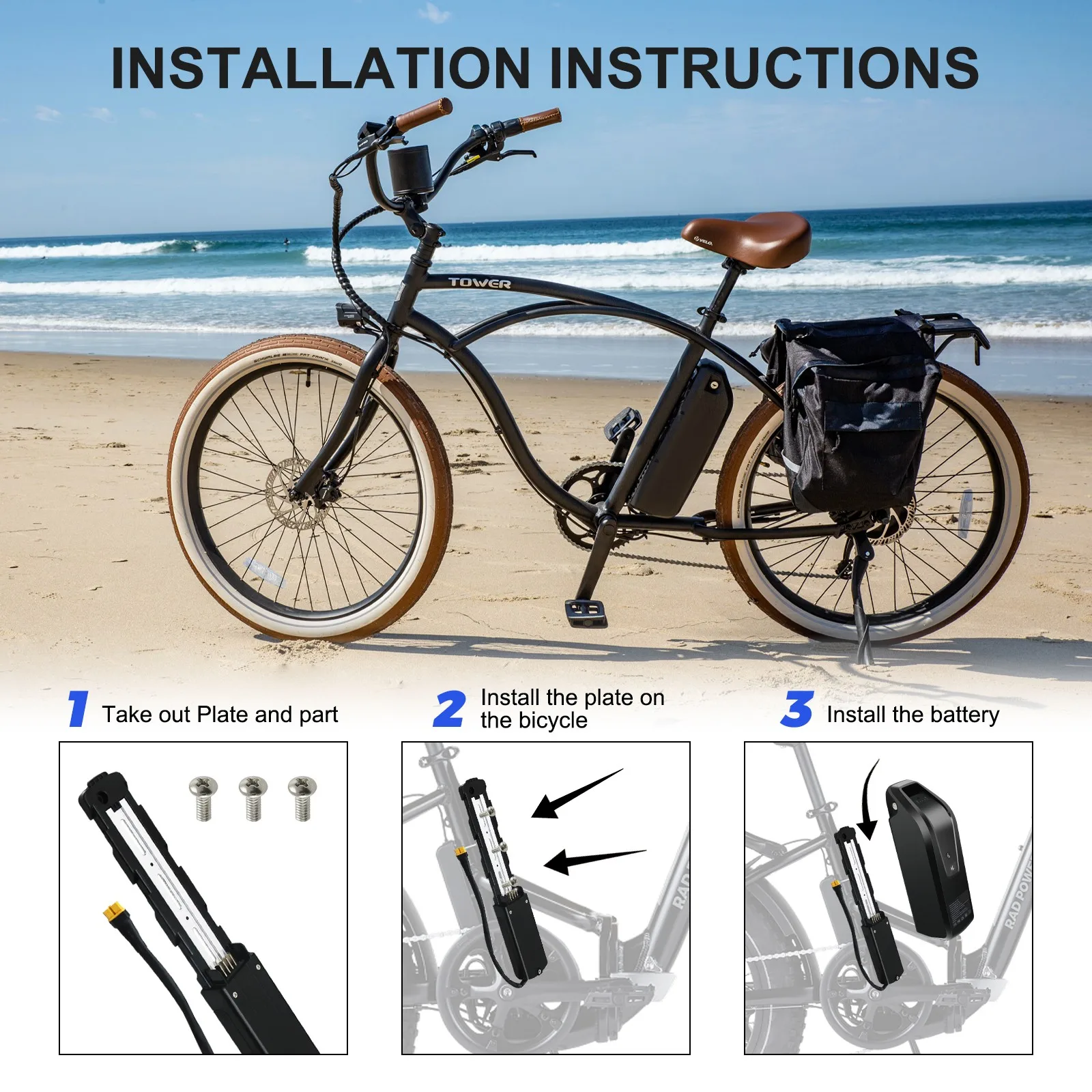

【Precautions】After installing the electric bike battery according to the instruction manual, please fully charge the lithium battery before you use. Please turn on the switch when you recharge so that the battery can be recharged 100% fully.
Please confirm the motor and voltage of your ebike before the purchase and check whether the size of the battery can be placed in your bike's frame,and finally choose the battery that fits for your bike.
Charging note: Please connect the charger to the power supply first, and then connect the charger to the battery

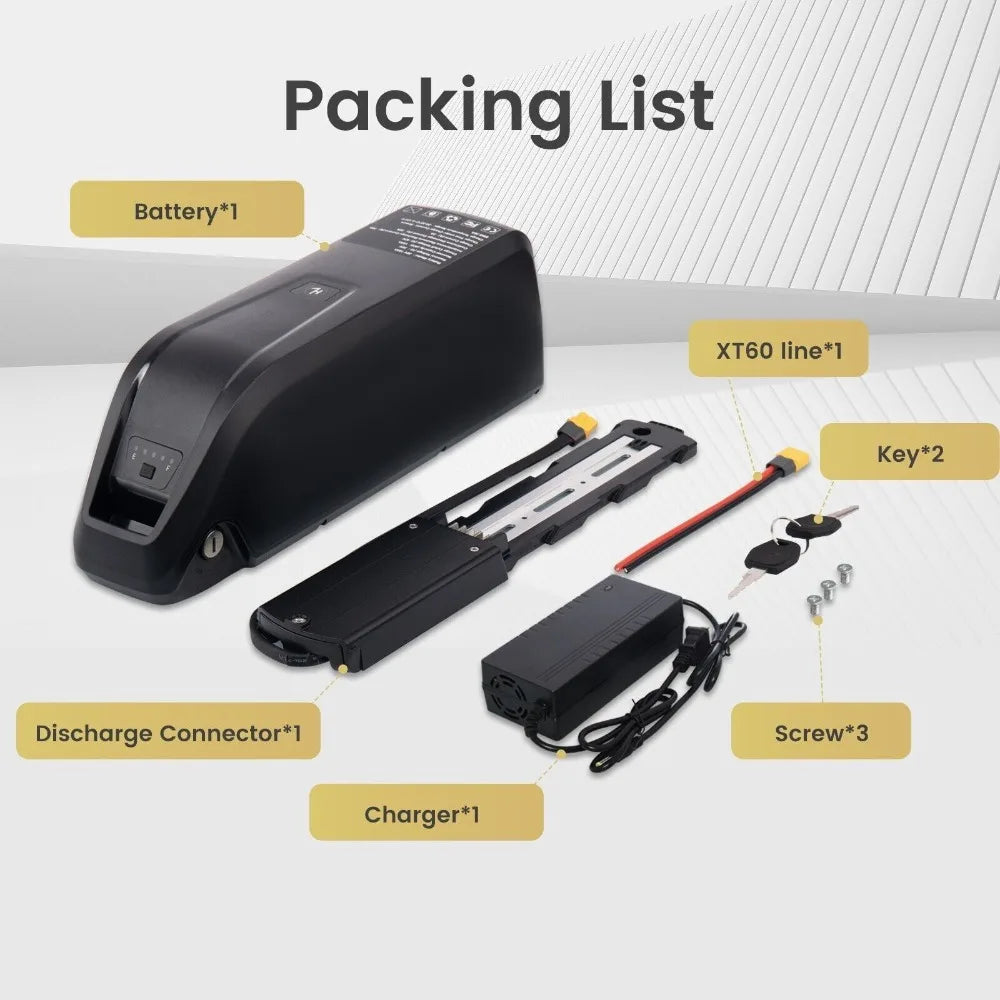

Package List (According to your choice)
* 1 x Lithium Ion (Li-Ion) Battery
* 1 x Female XT60 Connector
* 1 x Male XT60 Connector
* 1 x BMS
* 1 x Lithium Ion (Li-Ion) Battery Charger
* 3 x Screws(One spare)
* 2 x Keys
|

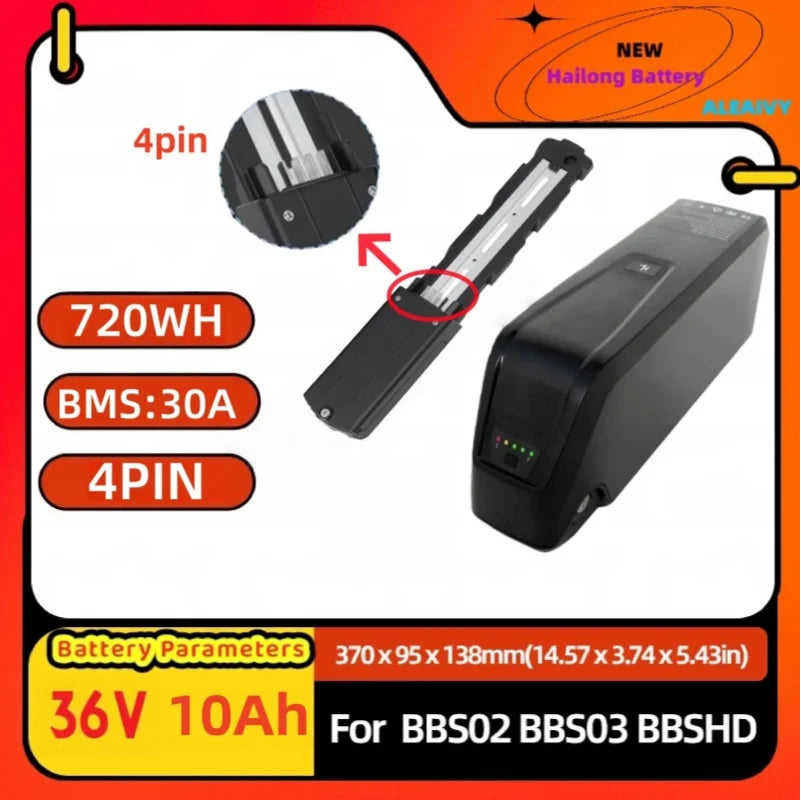

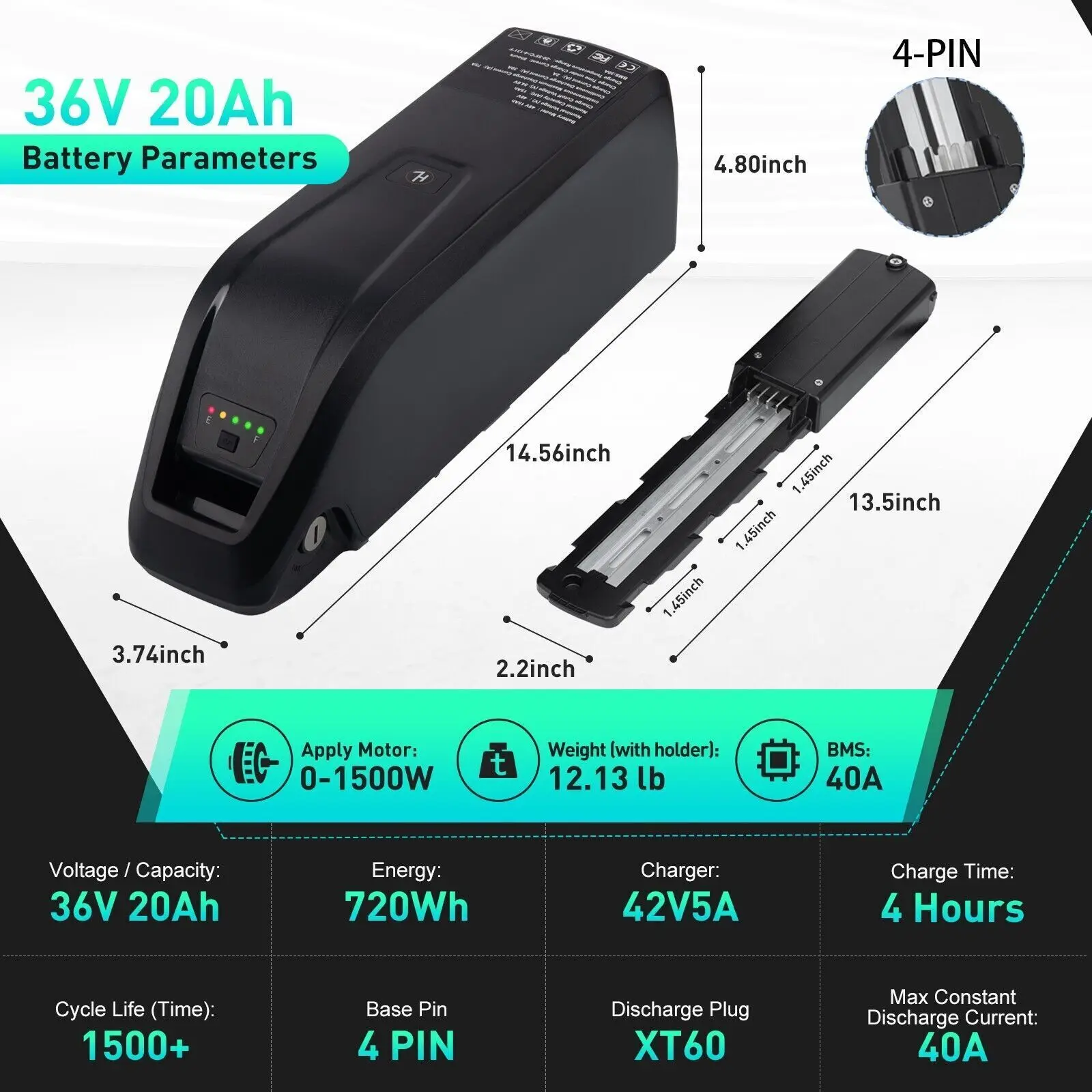

Nolminal Voltage |
36V 10Ah |
36V 15Ah |
36V 20Ah |

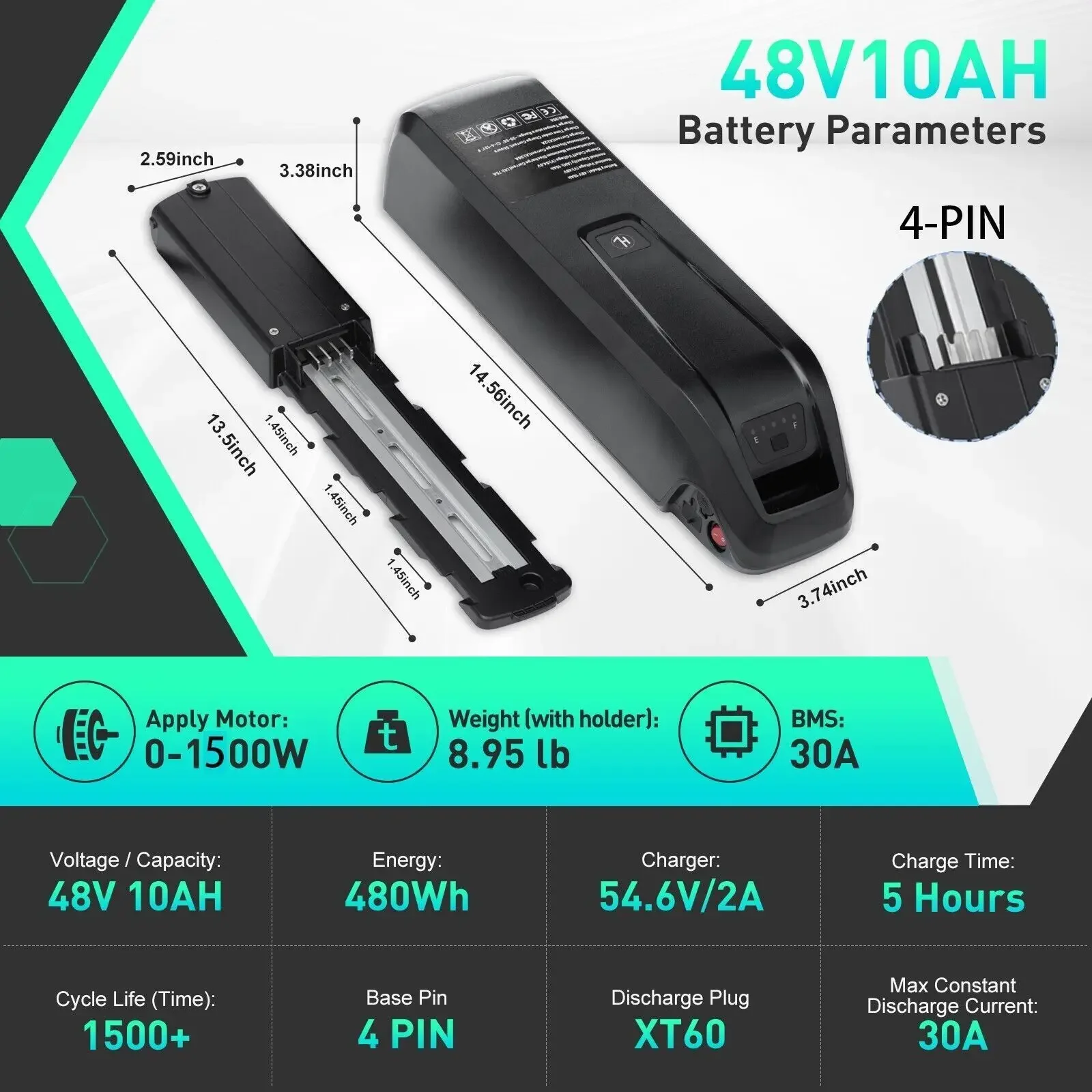

48V 10Ah |
|
Base In Plug |
4-PINS |
4-PINS |
4-PINS |
4-PINS |
|
For motor |
36V 0~1000w |
36V 0~1500w |
36V 0~1500w |
48V 0~1500w |
|
Watt Hours |
360Wh(Power:30-40KM) |
540Wh(Power:45-60KM) |
720Wh(Power:50-80KM) |
480Wh(Power:45-50KM) |
|
Cell |
A-grade 18650 |
A-grade 18650 |
A-grade 18650 |
A-grade 18650 |
|
Weight |
3.75 kg(8.27lbs) |
4.9 kg(10.8lbs) |
5.5 kg(12.13lbs) |
4.4 kg(9.7lbs) |
|
With Charger |
42V2A |
42V2A |
42V 2A |
54.6V 2A |
|
Discharge Connector |
XT60 |
XT60 |
XT60 |
XT60 |
|
BMS |
30A(BMS) |
40A(BMS) |
40A(BMS) |
30A(BMS) |
|
Size |
370*95*89mm (14.57*3.74*3.5in) |
370*95*122mm
(14.57*3.74*4.8in) |
370*95*138mm (14.57*3.74*5.43in) |
370*95*89mm (14.57*3.74*3.5in)
|
|

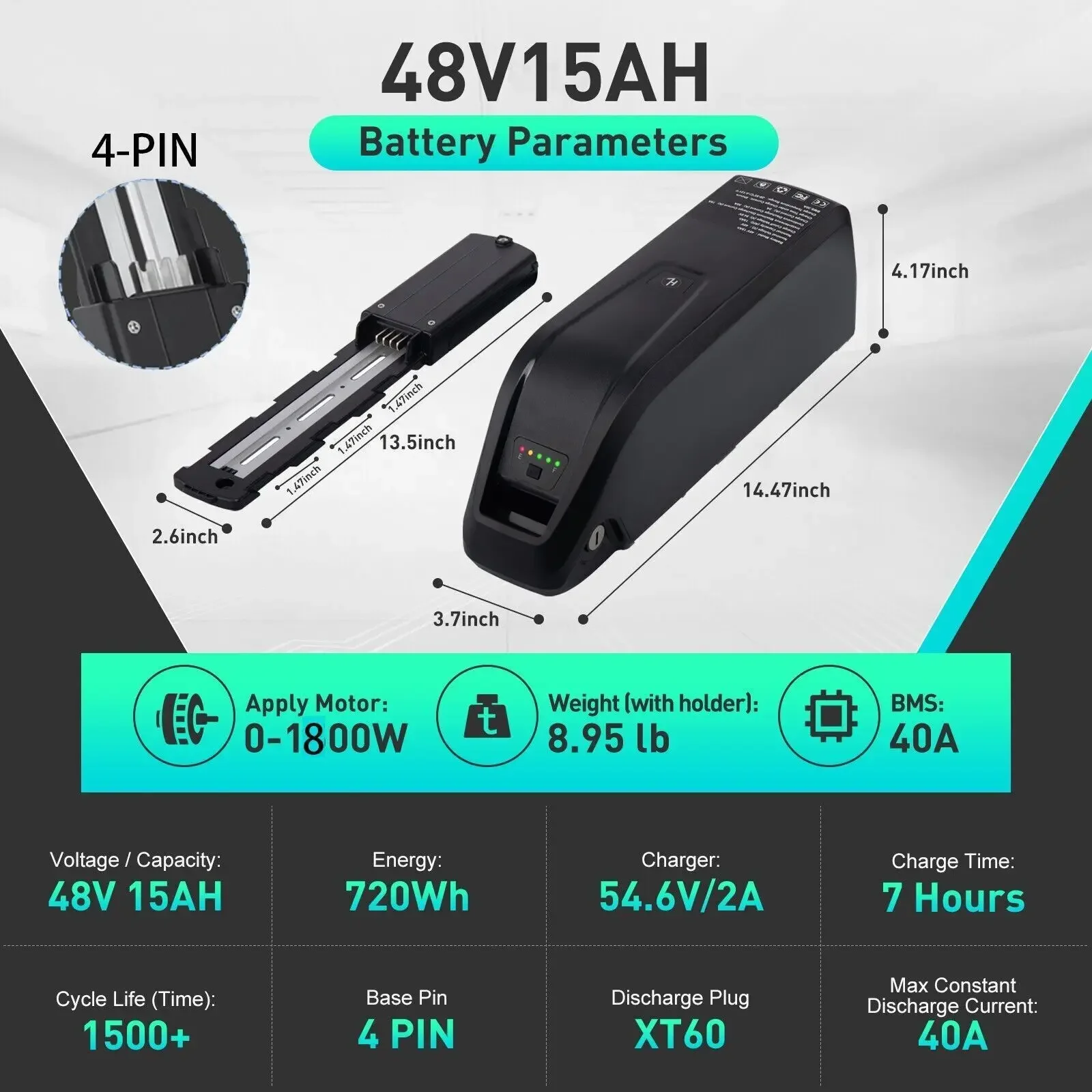

Nolminal Voltage |
48V 15Ah |

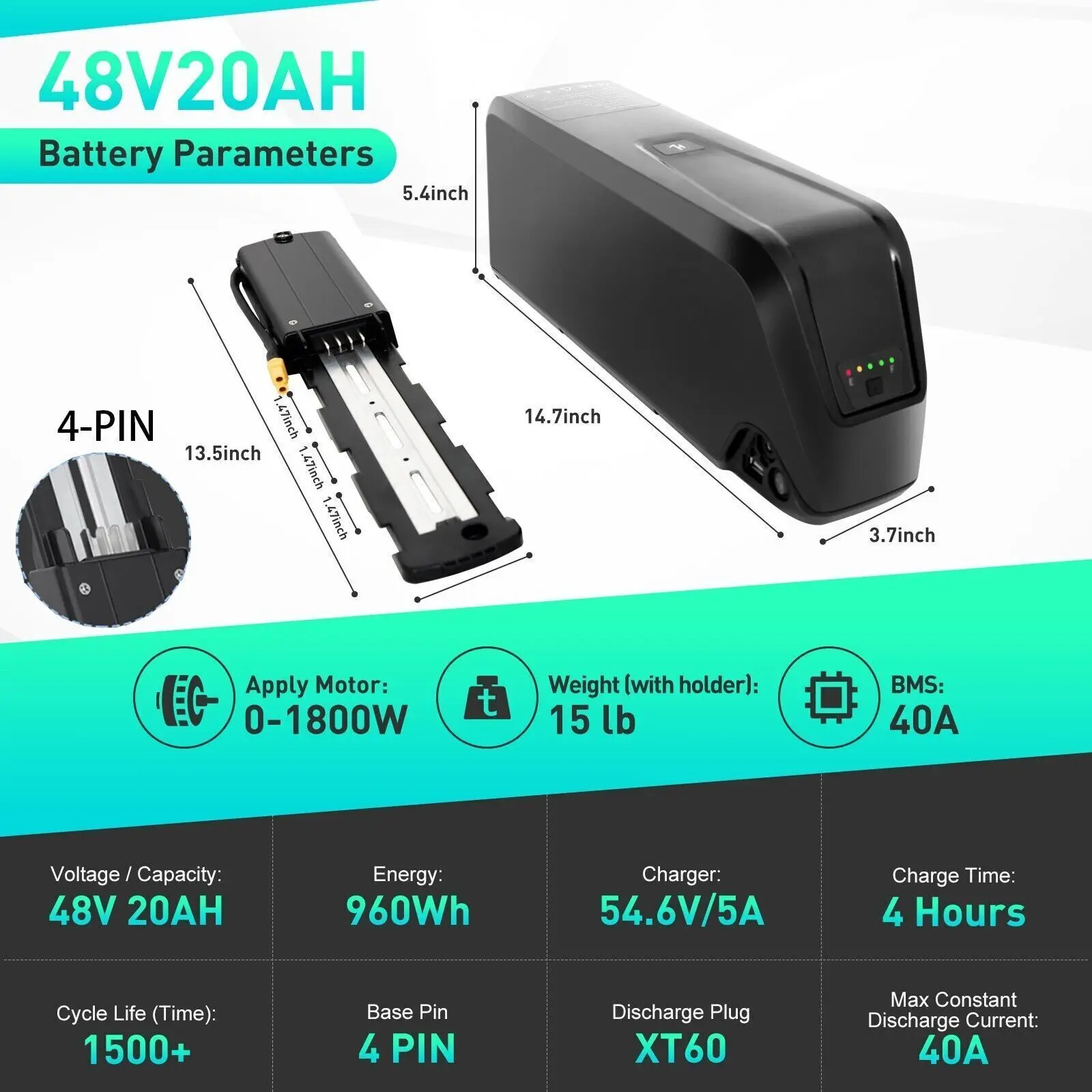

48V 20Ah |

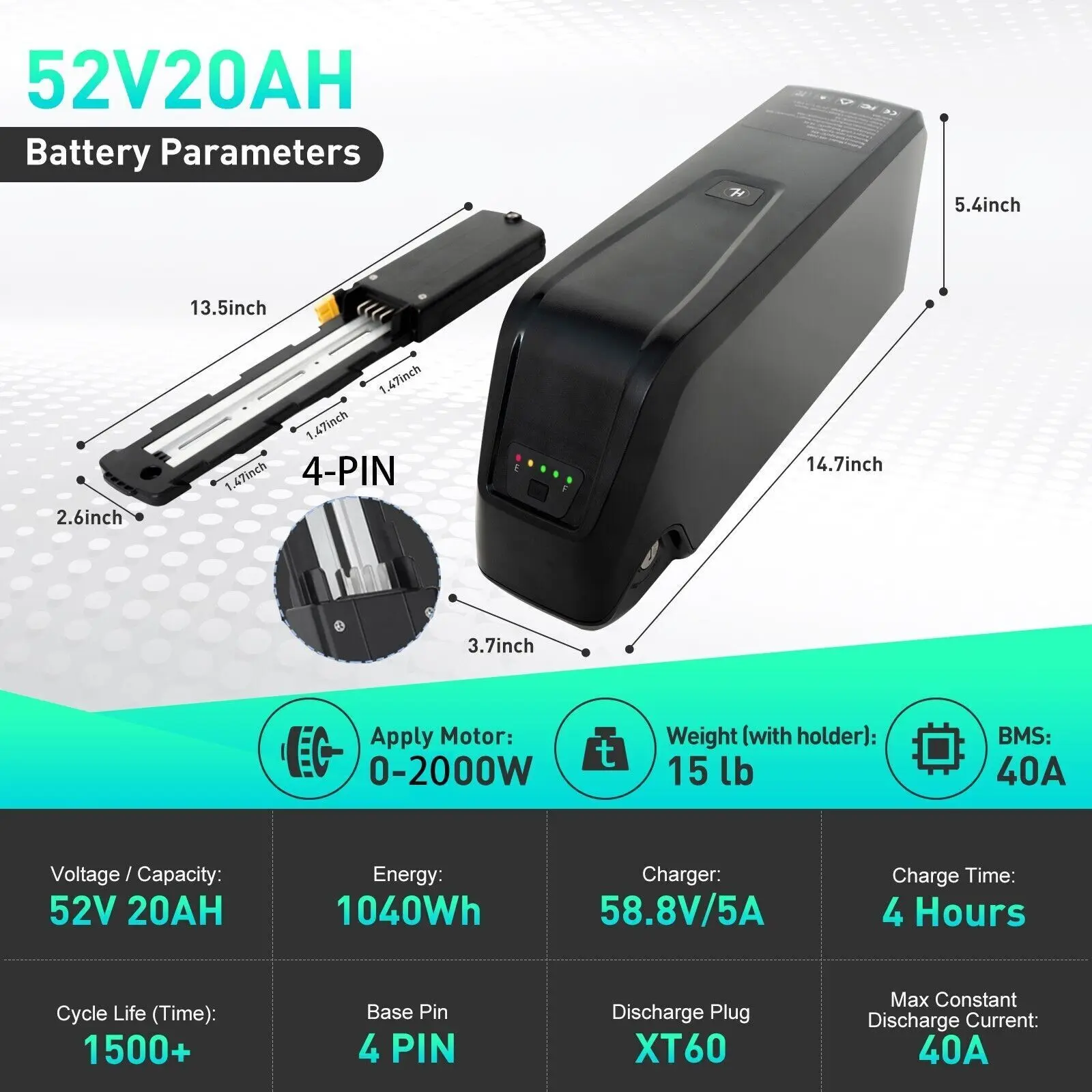

52V 20Ah |
36V 10Ah |
|
Base In Plug |
4-PINS |
4-PINS |
4-PINS |
5-PINS |
|
For motor |
48V 0~1800w |
48V 0~1800w |
48V 0~2000w |
36V 0~1000w |
|
Watt Hours |
720Wh(Power:45-60KM) |
960Wh(Power:60-80KM) |
1040Wh(Power:60-90KM) |
360Wh(Power:30-40KM) |
|
Cell |
A-grade 18650 |
A-grade 18650 |
A-grade 18650 |
A-grade 18650 |
|
Weight |
5.8 kg(12.79lbs) |
6.8 kg(14.99lbs) |
6.3kg(13.89lbs) |
3.75 kg(8.27lbs) |
|
With Charger |
54.6V 2A |
54.6V 2A |
58.8V 5A |
42V2A |
|
Discharge Connector |
XT60 |
XT60 |
XT60 |
XT60 |
|
BMS |
40A(BMS) |
40A(BMS) |
40A(BMS) |
30A(BMS) |
|
Size |
370*95*122mm (14.57*3.74*4.8in) |
370 x 95 x 138mm (14.57 x 3.74 x 5.43in) |
370 x 95 x 138mm (14.57 x 3.74 x 5.43in) |
370*95*89mm (14.57*3.74*3.5in) |
|

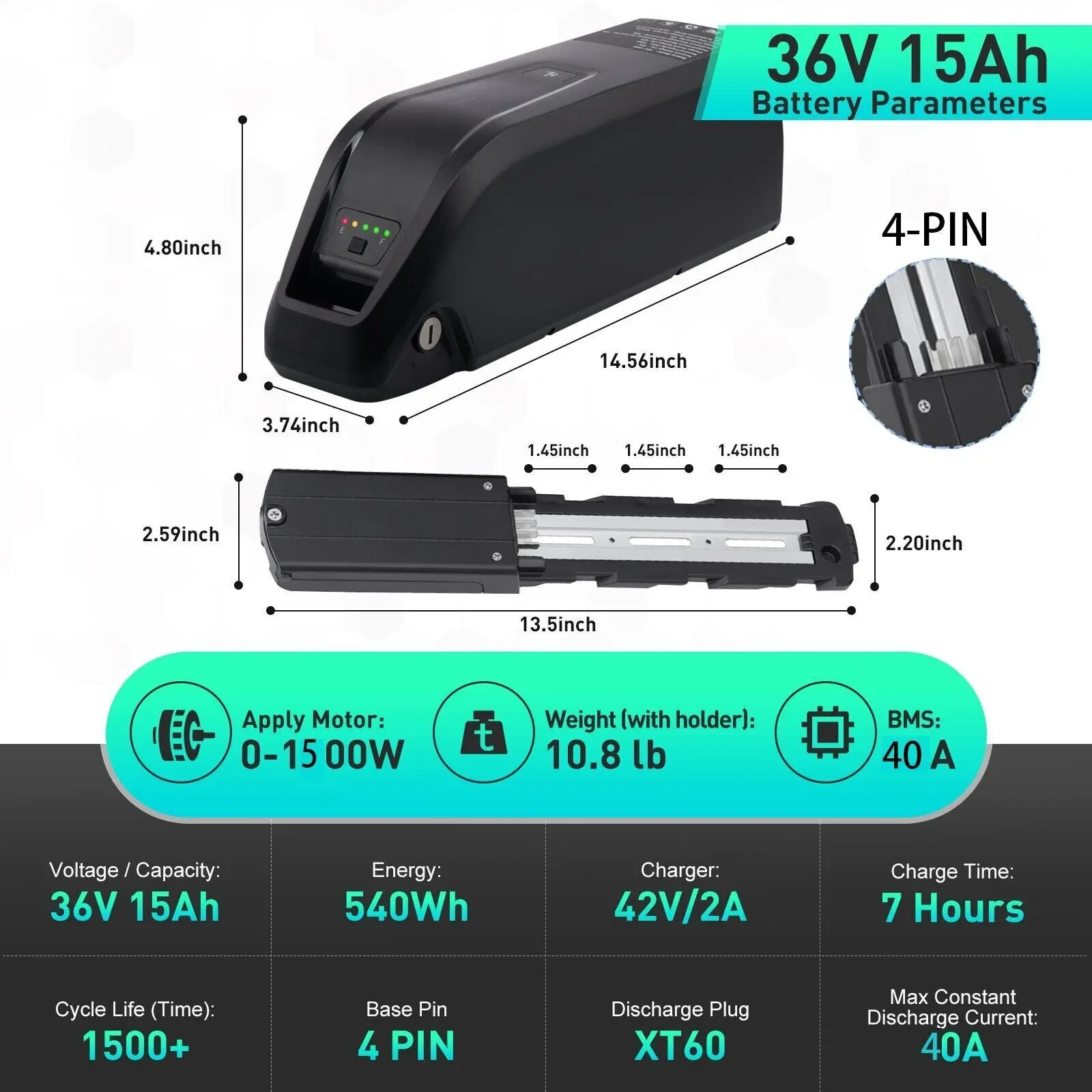

Nolminal Voltage |
36V 15Ah |
36V 20Ah |
48V 10Ah |
48V 15Ah |
|
Base In Plug |
5-PINS |
5-PINS |
5-PINS |
5-PINS |
|
For motor |
36V 0~1500w |
36V 0~1500w |
48V 0~1500w |
48V 0~1800w |
|
Watt Hours |
540Wh(Power:45-60KM) |
720Wh(Power:50-80KM) |
480Wh(Power:45-50KM) |
720Wh(Power:45-60KM) |
|
Cell |
A-grade 18650 |
A-grade 18650 |
A-grade 18650 |
A-grade 18650 |
|
Weight |
4.9 kg(10.8lbs) |
5.5 kg(12.13lbs) |
4.4 kg(9.7lbs) |
5.8 kg(12.79lbs) |
|
With Charger |
42V2A |
42V 2A |
54.6V2A |
54.6V 2A |
|
Discharge Connector |
XT60 |
XT60 |
XT60 |
XT60 |
|
BMS |
40A(BMS) |
40A(BMS) |
30A(BMS) |
40A(BMS) |
|
Size |
370*95*122mm (14.57*3.74*4.8in)
|
370*95*138mm (14.57*3.74*5.43in) |
370*95*89mm
(14.57*3.74*3.5inch)
|
370*95*122mm (14.57*3.74*4.8in) |
|
Nolminal Voltage |
48V 20Ah |
52V 20Ah |
|
Base In Plug |
5-PINS |
5-PINS |
|
For motor |
48V 0~1800w |
48V 0~2000w |
|
Watt Hours |
960Wh(Power:60-80KM) |
1040Wh(Power:60-90KM) |
|
Cell |
A-grade 18650 |
A-grade 18650 |
|
Weight |
6.8 kg(14.99lbs) |
6.3kg(13.89lbs) |
|
With Charger |
54.6V 2A |
58.8V 5A |
|
Discharge Connector |
XT60 |
XT60 |
|
BMS |
40A(BMS) |
40A(BMS) |
|
Size |
370 x 95 x 138mm (14.57 x 3.74 x 5.43in) |
370 x 95 x 138mm (14.57 x 3.74 x 5.43in) |
The Charger is UL 62368-1 certified and can provide documentation showing certification on request.
The Battery is UL 2849 UL 2272 certified and can provide documentation showing certification on request.
The creepage distance and electrical gap distance in the charger are sufficient, the product does not pose a fire risk, will not cause
components to overheat or explosion, and the output has a fuse to protect the battery pack from overcurrent conditions.
Battery charging input and output cables are also adequately protected against stress.
The plug meets the size requirements of the relevant standards, and there is no risk of electric shock to the user. The fuse complies with
relevant standards and does not pose a risk of fire or explosion in the event of failure. The product has been marked and labeled in
accordance with the standards
