36V/48V 350W 18A E-Scooter Brushless Motor Controller Kit with LCD Speed Display Throttle
36V/48V 350W 18A E-Scooter Brushless Motor Controller Kit with LCD Speed Display Throttle
The 36V/48V 350W Brushless Controller Set provides 18A peak current and sine-wave FOC drive for 200W–350W brushless DC motors, featuring integrated low-voltage cutoff protection (29V/42V) and an LCD throttle display.
⚠️ System Compatibility & Voltage Thresholds
IMPORTANT FITMENT GUIDELINES:
Brushless Motor Required: Engineered strictly for 3-phase brushless DC (BLDC) motors. Will NOT work with 2-wire brushed DC motors.
Dual Voltage Support: Selectable for 36V DC (29V Low-Voltage Cutoff) or 48V DC (42V Low-Voltage Cutoff) battery systems.
Throttle Signal Standard: Operates on a standard 1.1V to 4.2V throttle signal voltage.
Brake Input Signal: Wired for Low-Level E-Brake cut-off switches (0V signal trigger).
🚀 Key High-Performance Features
-
Silent FOC Sine Wave Drive: Eliminates motor noise and shudder for smooth, linear acceleration.
-
Integrated LCD Throttle Display: Shows real-time speed, battery level, and power status directly on the handlebar controls.
-
Automatic Undervoltage Safeguards: Automatic protection at 29V (36V mode) and 42V (48V mode) prevents over-discharging your battery pack.
-
Heatsink Aluminum Casing: Durable metal alloy casing promotes rapid thermal dissipation to protect internal electronics during extended operation.
-
Universal 3-Phase Wiring Harness: Simple plug-and-play connections for battery power input, 3-phase motor lines, Hall sensors, brake cut-offs, and throttle.
📊 Technical Specifications Matrix
| Specification Parameter | 350W 18A Controller Kit Specifications |
| Controller Drive Architecture | FOC Sine Wave Brushless (BLDC) |
| Supported System Voltages | 36V DC | 48V DC |
| Maximum Current Limit | 18A Peak Output ($\pm1\text{A}$) |
| Rated Output Power | 350W (Supports 200W–350W Motors) |
| Undervoltage Cut-off Thresholds | 29V (36V System) / 42V (48V System) |
| Throttle Voltage Signal | 1.1V to 4.2V |
| Brake Cut-off Signal | Low-Level E-Brake Trigger |
| Housing Construction | Grooved Aluminum Alloy Heat Sink Casing |
📋 Ideal Applications
The 36V / 48V 350W 18A Sine Wave Kit is engineered for:
-
350W Electric Scooters, E-Bikes & Light Utility Tricycles
-
DIY Brushless Hub Motor Repairs & Replacements
-
Commuter Scooter Throttle & Motherboard Upgrades
📦 Package Contents
-
1 x 36V/48V 350W 18A Sine Wave Brushless Motor Controller
-
1 x LCD Speedometer Display Throttle Assembly
-
1 x Complete Terminal Connection Diagram
Restore smooth power and reliable control to your e-scooter or e-bike! Select your option above, click Add to Cart, and order today!

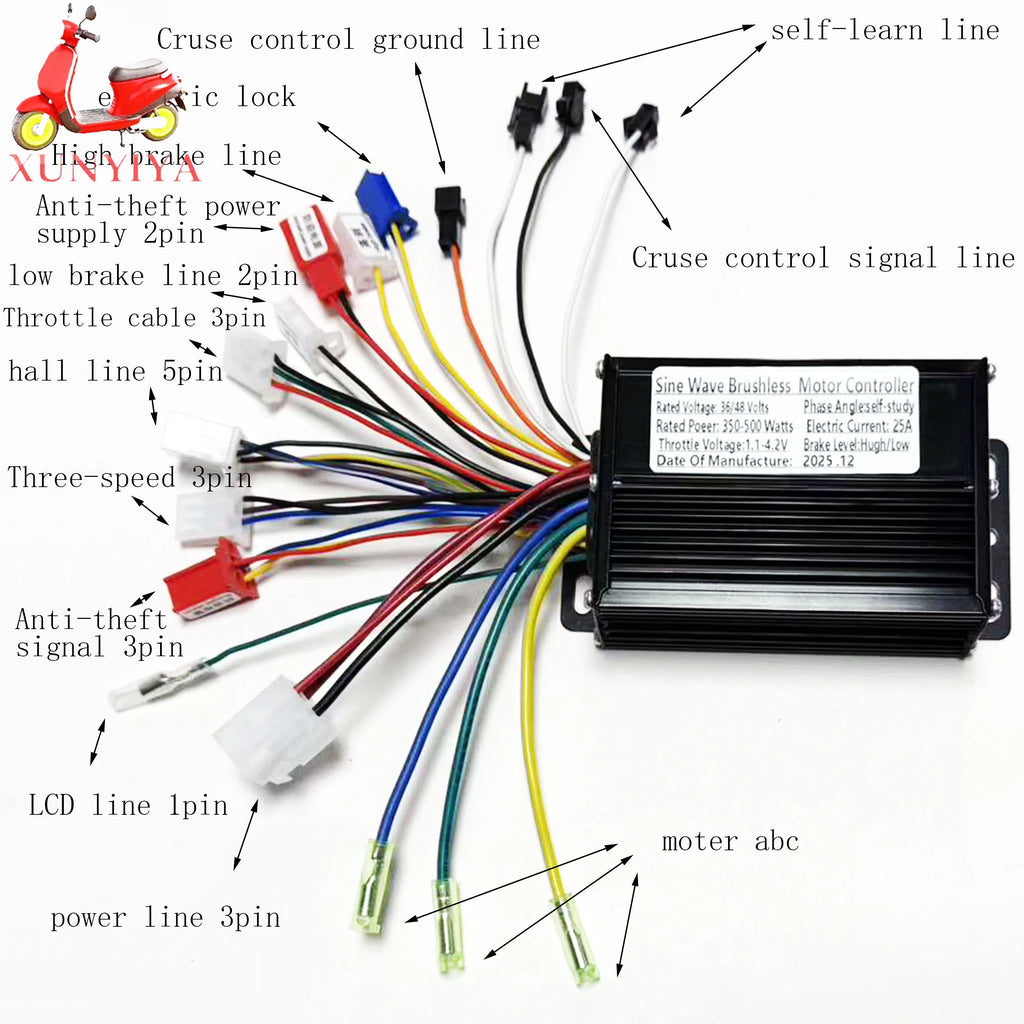

1.Cruse control signal line
2.sele-learn line
3.Cruse control ground line
4.electric lock
5.high brake line
6.Anti-theft power supply
7.low brake line
8.throttle cable
9.Hall line
10.Three-speed
11.Anti-theftsignal
12.LCD line
13.power line
14.15.16.moter abc
